In the ever-evolving landscape of optical networks, the quest for higher bandwidth, lower signal loss, and enhanced data transmission efficiency remains a constant pursuit. Among the array of technologies employed, polarization maintaining (PM) technologies stand out for their ability to mitigate polarization-related challenges that can significantly impact signal integrity and quality.

Understanding Polarization in Optical Networks

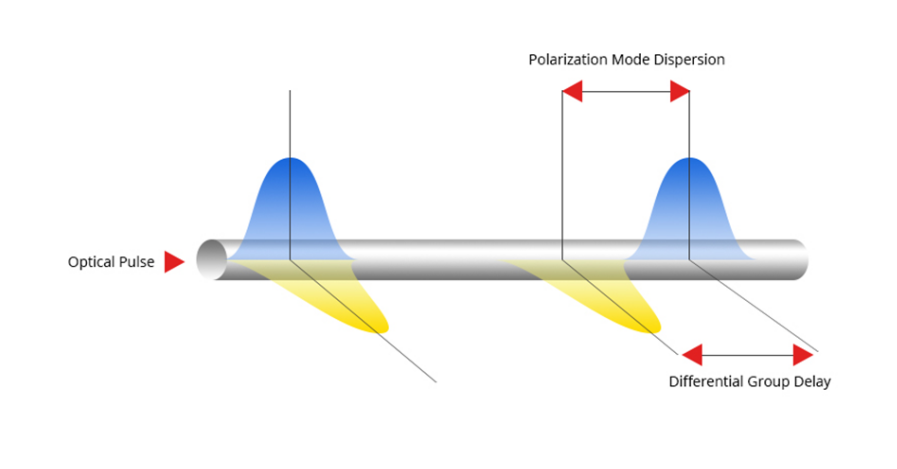

Polarization refers to the orientation of electromagnetic waves in a particular direction as they propagate through a medium. In optical fiber networks, light waves oscillate in various planes perpendicular to their direction of travel. When these waves encounter disturbances or inconsistencies in the fiber, they can experience changes in polarization, leading to polarization mode dispersion (PMD).

PMD causes signal distortion and limits the transmission capacity of optical networks. To counteract this, polarization-maintaining technologies were developed to maintain the original polarization state of light as it travels through the network.

Why There’s a Need to Maintain Polarization

In the mesmerizing realm of optical networks, where data traverses vast distances at the speed of light, the pivotal role of polarization maintenance often remains underestimated. Yet, it stands as a linchpin for ensuring the integrity, efficiency, and reliability of data transmission. Let’s delve deeper into why maintaining polarization is not just important but imperative in the world of optical communication.

Ensuring Data Integrity

Imagine light as the carrier of information in optical networks, akin to a messenger conveying vital data. However, if this messenger undergoes alterations in its polarization—a change in its orientation—it risks distorting or losing the information it carries. This underscores the criticality of preserving the original polarization state throughout its journey.

Mitigating Signal Interference

In densely packed optical fibers, signals travel in close proximity, creating the potential for interference. Controlled polarization becomes the shield against this interference, ensuring that signals in adjacent channels don’t disrupt each other. Maintaining distinct polarization states minimizes this cross-talk, facilitating clearer and more reliable transmissions.

Unlocking Enhanced Data Transmission

Optical networks constantly strive for enhanced data transmission rates. Here, polarization plays a transformative role. Advanced modulation techniques leverage different polarizations to carry separate data streams concurrently, effectively doubling the channel’s capacity. By maintaining distinct and stable polarizations, polarization-maintaining technologies enable these cutting-edge modulation formats, significantly boosting data transmission capabilities.

Reliability in Precision Applications

In domains where precision is non-negotiable—such as medicine, research, aerospace, and more—the stability and predictability of optical signals are paramount. Whether guiding a surgical laser, making minute astronomical measurements, or ensuring secure communications in satellites, maintaining consistent polarization becomes the bedrock of reliability in these precision-critical applications.

Combatting Signal Degradation

As light travels through optical fibers, it encounters various environmental factors like temperature fluctuations, mechanical stress, or imperfections in the fiber, all of which can alter its polarization. Such alterations lead to signal fading or degradation, especially in long-haul transmissions. Polarization maintenance technologies stand as guardians, preserving the integrity of signals over vast distances, combating signal degradation, and ensuring data remains pristine.

Maximizing Bandwidth and Data Capacity

In the relentless pursuit of higher bandwidth and data capacity, polarization plays a pivotal role. By maintaining separate and stable polarizations, polarization-maintaining technologies facilitate advanced modulation schemes like Dual Polarization Quadrature Phase Shift Keying (DP-QPSK), effectively amplifying the data capacity of optical channels, a prized asset in the data-driven world we inhabit.

Key Components of Polarization Maintaining Technologies

Polarization Maintaining Fibers (PMFs)

Polarization Maintaining Fibers (PMFs) stand as the bedrock of maintaining the polarization of light waves within optical networks. These specialized optical fibers are meticulously engineered to ensure the preservation of the light wave’s polarization state throughout its journey. How do they accomplish this feat? PMFs implement asymmetrical stress elements strategically embedded within their fiber structure. These elements induce distinct refractive indices for different polarizations, establishing what’s known as a “fast” and a “slow” axis within the fiber.

The ingenious design of PMFs ensures that light waves traveling through these fibers experience varying speeds contingent upon their polarization. This polarization-dependent speed discrepancy is fundamental in upholding the original polarization state of the transmitted light, thereby minimizing signal degradation and maximizing data transmission integrity within optical networks.

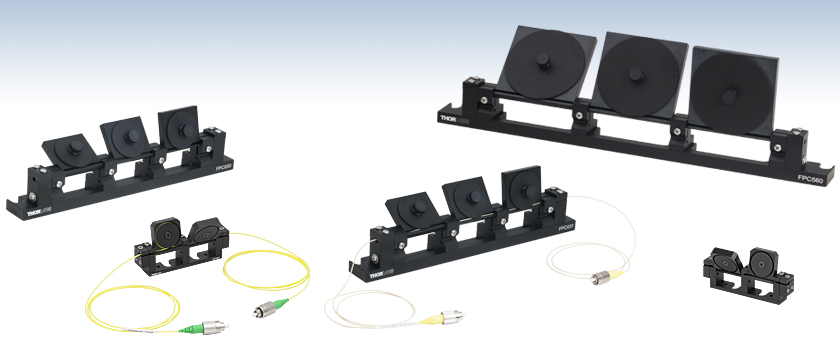

Polarization Controllers

Complementing the prowess of PMFs, Polarization Controllers emerge as pivotal devices offering meticulous control over the polarization state of light traversing through optical systems. These controllers enable precise manipulation and adjustment of the orientation of the light’s polarization. By facilitating this control, polarization controllers empower engineers to align light waves precisely along the intended polarization axis, mitigating potential polarization-related discrepancies or disruptions within the network.

Polarization Dependent Components

Furthermore, the strategic utilization of polarization-dependent components plays a significant role in optimizing the efficiency and performance of optical networks. Certain optical components, including polarizers and waveplates, exhibit varying behaviors based on the polarization state of the incoming light. Leveraging these components strategically enables engineers to fine-tune the behavior of light waves within the network.

Polarizers, for instance, selectively pass light waves with a particular polarization while absorbing or reflecting others, thereby assisting in controlling the direction and alignment of polarized light. On the other hand, waveplates alter the polarization state of light passing through them, allowing engineers to manipulate and modify the polarization characteristics as required for specific applications within the optical network.

Understanding the unique functionalities and behaviors of these polarization-dependent components empowers engineers to deploy them strategically, optimizing signal quality, minimizing losses, and enhancing the overall efficiency of optical networks.

Applications of Polarization Maintaining Technologies

Telecommunications

In telecommunications, where high-speed data transmission is crucial, PM technologies play a pivotal role. They enable the reliable and efficient transmission of data over long distances by minimizing signal distortion and maximizing signal integrity.

Fiber Optic Sensing

Polarization-maintaining technologies find applications in sensitive areas like fiber optic sensing. By preserving the polarization state of light, these technologies enhance the accuracy and reliability of sensing systems used in industries like aerospace, oil and gas, and medical diagnostics.

High-Precision Instrumentation

Industries relying on high-precision optical instruments, such as interferometers and lasers, benefit greatly from polarization-maintaining technologies. These technologies ensure the stability and accuracy of measurements by maintaining the integrity of polarized light.



Mastering Polarization Maintaining Technologies

Understanding PM Fiber Characteristics

Mastering polarization-maintaining technologies demands a deep exploration of Polarization Maintaining (PM) Fiber characteristics, diving into the intricacies of these fibers’ properties to harness their full potential within optical networks. Birefringence, a fundamental characteristic of PM fibers, delineates the variance in refractive indices between their fast and slow axes. Understanding this disparity is key to comprehending how PM fibers maintain polarization. The differential refractive indices ensure that light waves of varying polarizations propagate at different speeds within the fiber, preserving their original polarization state during transmission. Mastery of PM technologies involves a nuanced grasp of birefringence and its implications on signal integrity and quality within optical networks.

Another critical facet is the beat length of PM fibers, dictating the distance required for light to complete a full cycle of polarization within the fiber. Mastery in this aspect involves comprehending how beat length impacts signal transmission and ensuring that the fiber length is optimized to preserve the intended polarization state effectively.

Optimizing Polarization Controllers

Optimizing Polarization Controllers stands as another cornerstone in mastering polarization maintenance. These controllers demand precise calibration and adjustments to attain optimal performance. Mastery involves a profound understanding of how minute adjustments impact signal quality and polarization states within the network. Engineers proficient in polarization controller manipulation employ sophisticated techniques to fine-tune polarization states, ensuring optimal alignment and minimizing signal degradation.

Utilizing Polarization Diversity Techniques

Polarization Diversity Techniques elevate mastery in polarization-maintaining technologies. Implementing these techniques involves harnessing multiple polarization states strategically to enhance network resilience against polarization-induced impairments. Techniques like polarization multiplexing and diversity reception enable systems to capitalize on diverse polarization states, augmenting robustness and improving overall performance. Mastery of these techniques empowers engineers to design and deploy systems that mitigate polarization-related challenges, ensuring reliable and high-quality data transmission.

The Crucial Role of HOLIGHT’s Polarization Maintaining Solutions

In the intricate tapestry of optical networks, the preservation of polarization stands as a cornerstone for seamless, reliable data transmission. HOLIGHT, a beacon of innovation in the field, offers a suite of meticulously engineered products that ensure the steadfast maintenance of polarization—paving the way for unparalleled data integrity, efficiency, and precision.

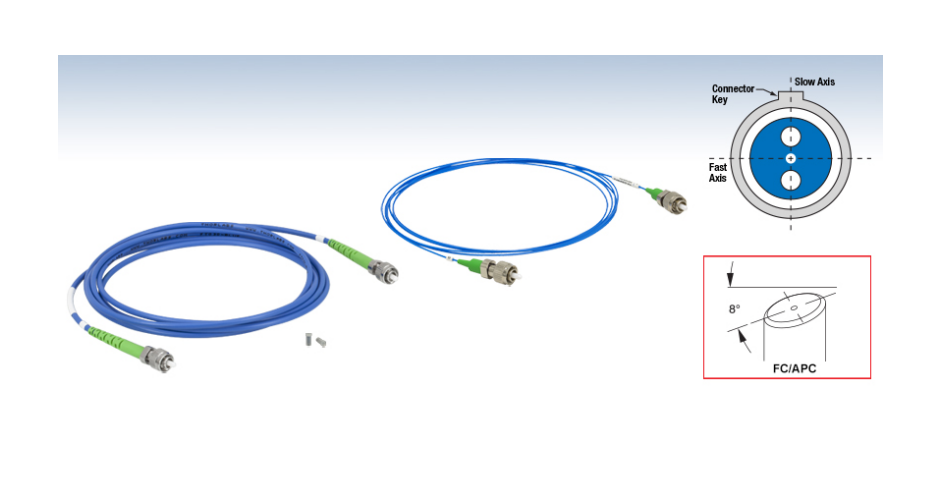

Polarization Maintaining Cable:

HOLIGHT’s Polarization Maintaining Cable epitomizes precision and reliability in optical communication. Crafted with a specialized design that retains injected light’s polarization over extensive distances, these cables are the backbone of high-speed communications, sensors, research, and telecom component manufacturing. Our Polarization Maintaining Cables, boasting unparalleled birefringence, stand as the vanguard against polarization drifts, ensuring data fidelity and transmission reliability across expansive networks.

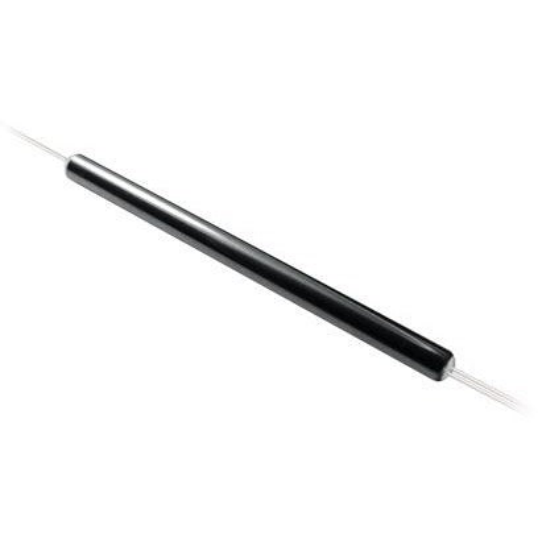

Polarization Maintaining Splitter:

At HOLIGHT, the polarization-maintaining splitter emerges as a crucial component in the symphony of optical systems. Ingeniously engineered to divide incoming light while impeccably preserving its polarization, our PM Splitters find applications in telecommunications, research labs, interferometric sensors, and quantum computing. With a meticulous focus on birefringence preservation and low insertion loss, HOLIGHT’s PM Splitters facilitate parallel processing and routing of signals without compromising polarization integrity.

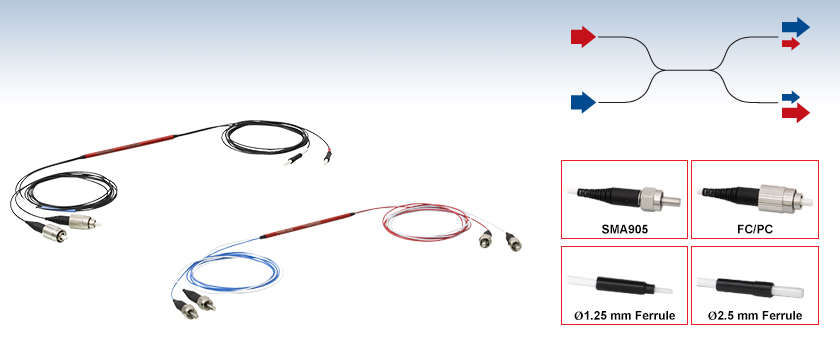

Polarization Maintaining Coupler:

In the intricate dance of merging and splitting light signals without faltering their polarization, HOLIGHT’s Polarization Maintaining Coupler takes center stage. These devices, meticulously designed to maintain polarization while combining or splitting optical signals, find their niche in telecommunications, optical instrumentation, sensing systems, and laser setups. Featuring a construction that ensures birefringent preservation and minimal insertion loss, our PM Couplers uphold the sanctity of polarization, ensuring optimal performance in diverse optical assemblies.

Future Developments and Challenges

However, challenges persist, such as the integration of PM technologies into complex network configurations and the cost-effectiveness of implementing these technologies on a large scale. Overcoming these challenges will be pivotal in realizing the full potential of polarization-maintaining technologies in optical networks.

As optical networks advance, the demand for higher data rates and increased efficiency continues to grow. Future developments in polarization-maintaining technologies are expected to focus on minimizing PMD further, enabling higher-speed transmission, and enhancing compatibility with emerging network architectures, including quantum communication and photonic computing.



Conclusion

Polarization-maintaining technologies stand as indispensable tools in ensuring the stability, reliability, and efficiency of optical networks. Mastery of these technologies involves a deep understanding of PM fibers, precise manipulation of polarization controllers, and strategic utilization of polarization diversity techniques.

As the demand for higher data transmission rates and improved network performance continues, mastering polarization-maintaining technologies becomes increasingly crucial. Embracing and advancing these technologies will pave the way for the next generation of high-speed, low-loss, and robust optical communication systems, heralding a new era of connectivity and innovation.

Please contact sales@holightoptic.com to get more information.
