In the rapidly advancing world of telecommunications, the demand for high-speed, reliable internet and communication services has grown exponentially. Fiber optic technology is at the forefront of this evolution, providing unmatched data transmission speeds and bandwidth capabilities. However, the integrity and reliability of a fiber optic network are only as strong as the components that protect it. One of the most critical components in ensuring the longevity and efficiency of fiber optic cables is the fiber optic splice closure.
Understanding Fiber Optic Splice Closures
Fiber optic splice closures are protective enclosures designed to house and safeguard the spliced ends of fiber optic cables. These closures are crucial for preventing environmental factors such as moisture, dust, and physical stress from compromising the integrity of the splices. The closures also ensure that the delicate fibers inside are not damaged during handling or installation.
The primary function of a splice closure is to maintain the continuity and integrity of the optical signal as it travels through the fiber optic cable. Any compromise in the splice can result in signal loss, which can severely impact the performance of the network.
Importance of Fiber Optic Splice Closures
1. Protection from Environmental Factors

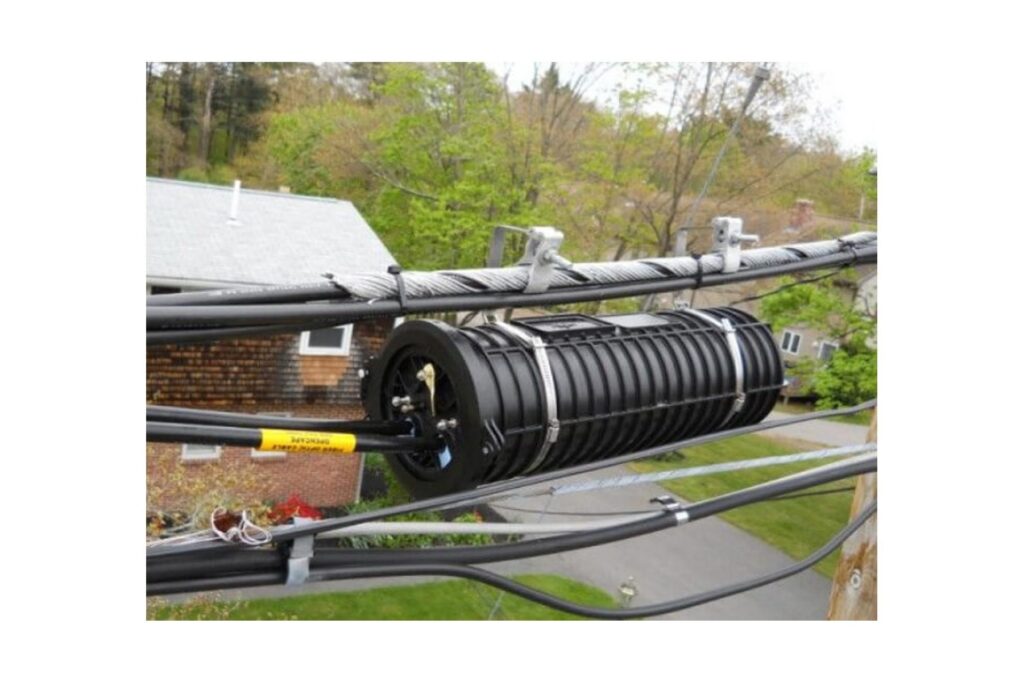

Fiber optic splice closures are engineered to withstand harsh environmental conditions, including extreme temperatures, moisture, and dust. These closures are typically made from durable materials like high-density polyethylene or stainless steel, providing a robust barrier against environmental stressors. By keeping the splices protected, these closures help maintain the overall integrity of the fiber optic network.
2. Ensuring Signal Integrity
The integrity of the optical signal is paramount in any fiber optic network. Splice closures are designed to minimize any potential disruptions to the signal by protecting the spliced fibers from physical stress and environmental factors. This protection is crucial in maintaining consistent signal quality, which directly impacts the performance and reliability of the network.
3. Enhancing Network Longevity
A well-protected splice can last for many years without any degradation in performance. By housing the splices in a secure and durable enclosure, splice closures help extend the life of the fiber optic network. This longevity translates to reduced maintenance costs and fewer network outages, providing a more reliable service to end-users.

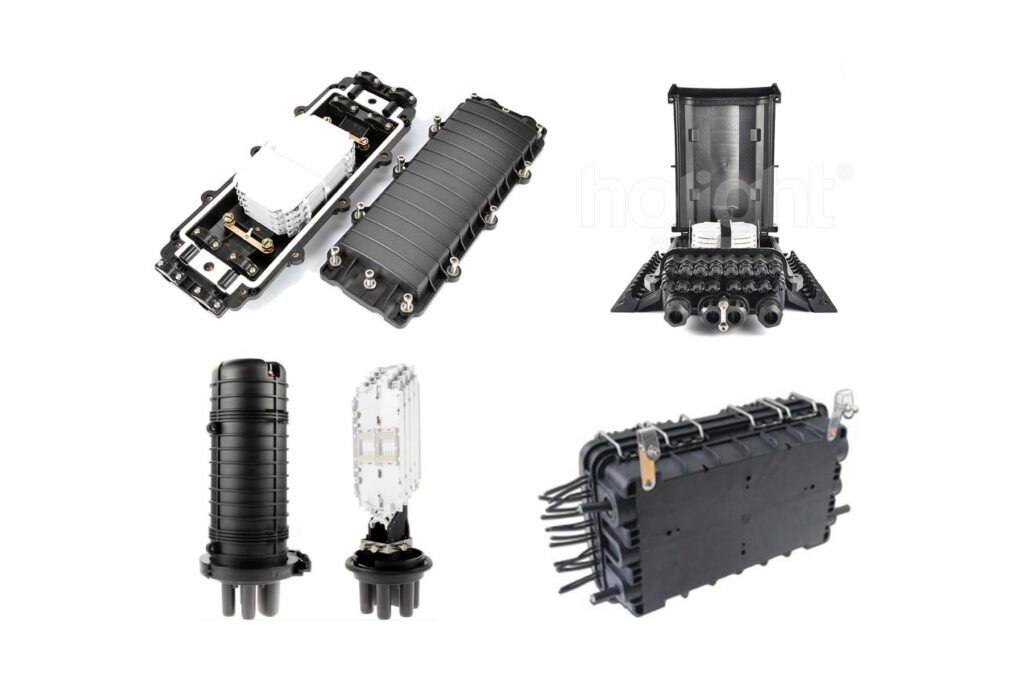

Types of Fiber Optic Splice Closures
There are several types of fiber optic splice closures available, each designed to meet specific needs and applications. The choice of closure depends on factors such as the environment in which it will be installed, the number of fibers being spliced, and the type of fiber optic cable used.
1. Horizontal Splice Closures
Horizontal fiber optic splice closures have a wide, flat profile suitable for horizontal mounting on a wall or in a cable bank. Fiber optic cables are connected with multiple cable entries and exits on the front or side. Horizontal closures are often chosen to reduce the number of cables but can accommodate multiple splice trays. The seal provides protection from environmental factors such as moisture and dust. If these fiber optic splice closures are attached to a pole or hung from wires, they need to be securely fastened to avoid damage from weather and wind.
2. Dome Splice Closures
Dome splice closures, also known as butt splice closures, are designed for splicing multiple fiber optic cables in various configurations. These closures are often used in distribution networks where multiple cables converge at a single point. Dome closures offer a higher capacity for splices and are ideal for complex network configurations.
Installation of Fiber Optic Splice Closures
The installation of fiber optic splice closures is a critical step in ensuring the longevity and performance of the fiber optic network. Proper installation requires careful planning, precise execution, and attention to detail to avoid compromising the integrity of the splices.
1. Pre-Installation Planning
Before beginning the installation process, it is essential to conduct thorough planning. This planning phase includes selecting the appropriate type of splice closure for the specific application, ensuring that all necessary tools and materials are available, and conducting a site survey to identify any potential challenges.
2. Preparing the Cables
The first step in the installation process is to prepare the fiber optic cables for splicing. This preparation involves stripping the outer jacket of the cable, cleaning the fibers, and arranging them in the proper configuration for splicing. It is essential to handle the fibers with care to avoid damaging them during this process.
3. Splicing the Fibers
Once the cables are prepared, the fibers can be spliced together using a fusion splicer. Fusion splicing is the preferred method for joining fiber optic cables as it provides the lowest loss and the most reliable connection. During this process, the fibers are aligned and fused together using an electric arc, creating a permanent bond between the fibers.

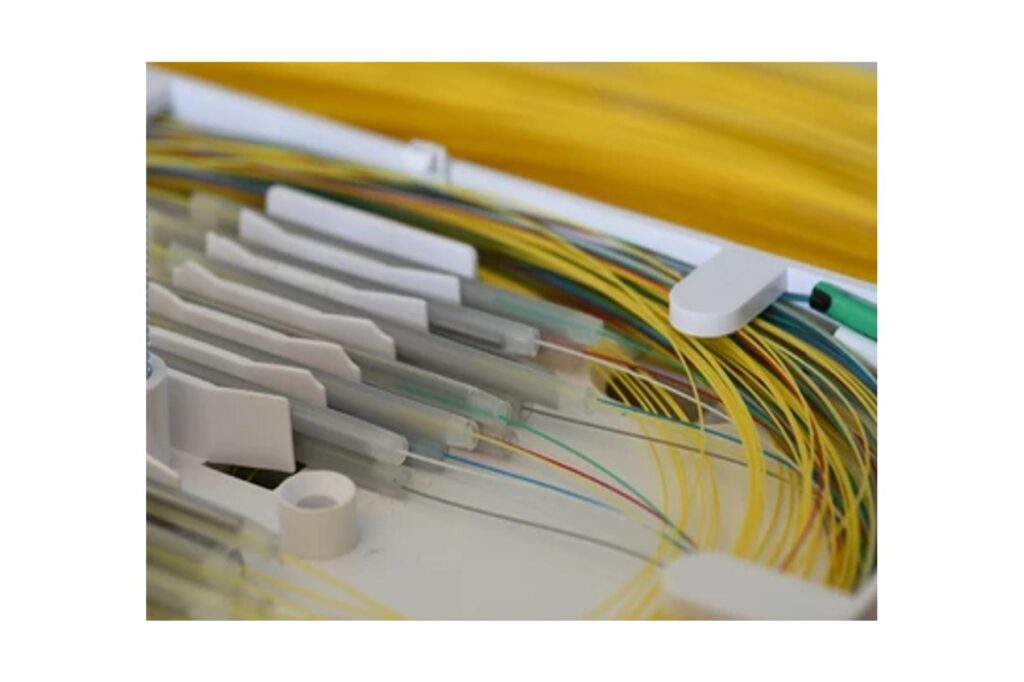

4. Placing the Splices in the Closure
After the splicing is complete, the splices are placed inside the splice closure. The closure should be carefully sealed to prevent moisture, dust, and other contaminants from entering. The splices are typically organized and secured in a splice tray, which is then placed inside the closure.
5. Sealing the Closure
Sealing the closure is a crucial step in the installation process. The closure must be sealed properly to prevent any environmental factors from compromising the integrity of the splices. This sealing process often involves using heat-shrink tubing or other sealing materials to create a watertight and dustproof barrier around the splices.
6. Testing the Installation
Once the closure is sealed, it is essential to test the installation to ensure that the splices are functioning correctly. This testing typically involves using an optical time-domain reflectometer (OTDR) to measure the loss and reflectance of the splices. Any issues identified during testing should be addressed immediately to avoid future problems.
Maintenance of Fiber Optic Splice Closures
Proper maintenance of fiber optic splice closures is essential to ensure the long-term performance and reliability of the fiber optic network. Regular inspections and maintenance can help identify and address potential issues before they result in network outages or degraded performance.
1. Regular Inspections
Regular inspections of fiber optic splice closures are crucial for identifying potential issues such as damage to the closure, moisture ingress, or physical stress on the splices. These inspections should be conducted at regular intervals, depending on the environment in which the closure is installed.
2. Cleaning the Closure
Over time, dirt, dust, and other contaminants can accumulate on the exterior of the splice closure. Cleaning the closure regularly helps prevent these contaminants from entering the closure and compromising the integrity of the splices. Cleaning should be done using appropriate methods and materials to avoid damaging the closure.
3. Checking for Moisture Ingress
Moisture ingress is one of the most common issues that can compromise the integrity of a splice closure. Regularly checking the closure for signs of moisture ingress, such as condensation or corrosion, is essential for preventing long-term damage to the splices. If moisture is detected, the closure should be resealed immediately to prevent further ingress.
4. Re-Sealing the Closure
If the splice closure has been opened for maintenance or inspection, it is crucial to reseal it properly to maintain its protective properties. Re-sealing the closure involves ensuring that all seals and gaskets are in good condition and that the closure is sealed watertight.
5. Monitoring Splice Performance
Monitoring the performance of the splices inside the closure is essential for identifying any issues that may arise over time. This monitoring typically involves regular testing using an OTDR to measure the loss and reflectance of the splices. Any degradation in performance should be addressed immediately to prevent further issues.

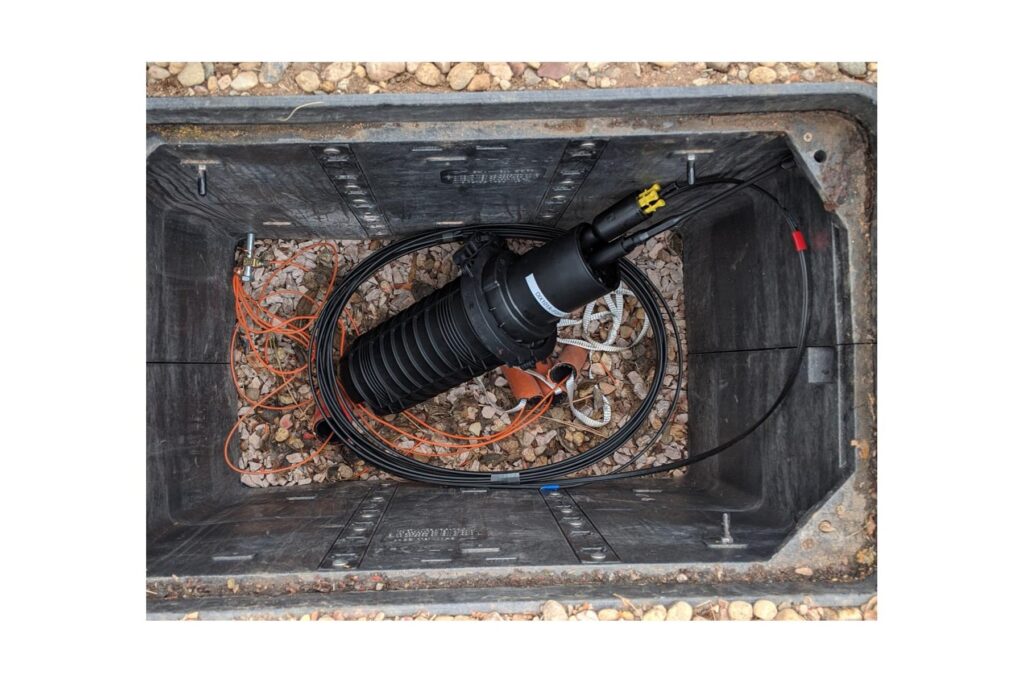

Factors to Consider When Choosing a Splice Closure
① Cable Capacity
Determine the number of fiber cables and splices that the closure needs to accommodate. This consideration will help you choose a closure with the appropriate size and configuration.
② Environmental Conditions
Consider the environmental conditions in which the splice closure will be installed. For outdoor or underground installations, opt for closures with robust sealing and insulation to protect against moisture, dust, and temperature fluctuations.
③ Type of Splicing Method
The type of splicing method (fusion splicing or mechanical splicing) will influence the choice of splice closure. Ensure that the closure is compatible with the splicing method you plan to use.
④ Ease of Access and Maintenance
Choose a splice closure that offers easy access to the spliced fibers for maintenance and troubleshooting. Closures with organized cable management features can simplify these tasks.
⑤ Durability and Longevity
Invest in a splice closure made from high-quality materials that can withstand the environmental and mechanical challenges of the installation site. Durable closures will provide long-term protection for your fiber optic network.
Conclusion
Fiber optic splice closures play a vital role in maintaining the integrity and reliability of fiber optic networks. By providing a robust protective barrier against environmental factors and physical stress, these closures help ensure that the network operates at optimal performance levels. Proper installation and maintenance of splice closures are essential for maximizing the longevity and reliability of the network, ultimately leading to lower maintenance costs and fewer network outages.
In summary, understanding the importance of fiber optic splice closures, selecting the appropriate type for your specific needs, and following best practices for installation and maintenance are crucial for ensuring the success of your fiber optic network.
