1. Why Fiber Design Matters in Liquid-Cooled Racks

As GPUs move beyond 1200 W per chip and rack power exceeds 50 kW, liquid cooling has become standard in AI and high-performance data centers.
While this shift improves heat management, it also changes how fiber cabling must be routed and protected.
Coolant manifolds, CDUs, and hoses now share space with patch cords and adapters — leaving little room for error.

Planning your optical layout before cooling installation prevents downtime, condensation, and accidental damage.
Let’s look at how to safely integrate fiber with today’s liquid-cooled environments.

2. Liquid Cooling Methods and Their Impact on Fiber

2.1 Cold-Plate (Direct-to-Chip / DLC)

Coolant flows through micro-channel plates attached to GPUs or CPUs.
CDUs distribute coolant via manifolds, often mounted at the rear or bottom of the rack — so fiber trunks and jumpers must stay clear of that area.

2.2 Immersion Cooling

Servers are fully submerged in a dielectric fluid.
All optical connections must remain outside the tank or pass through IP-rated feedthroughs using short pigtails.

2.3 Spray / Jet Cooling

Coolant is sprayed onto hot components.
Any nearby fiber should be routed through protective ducts or raised trays to avoid mist and vibration.

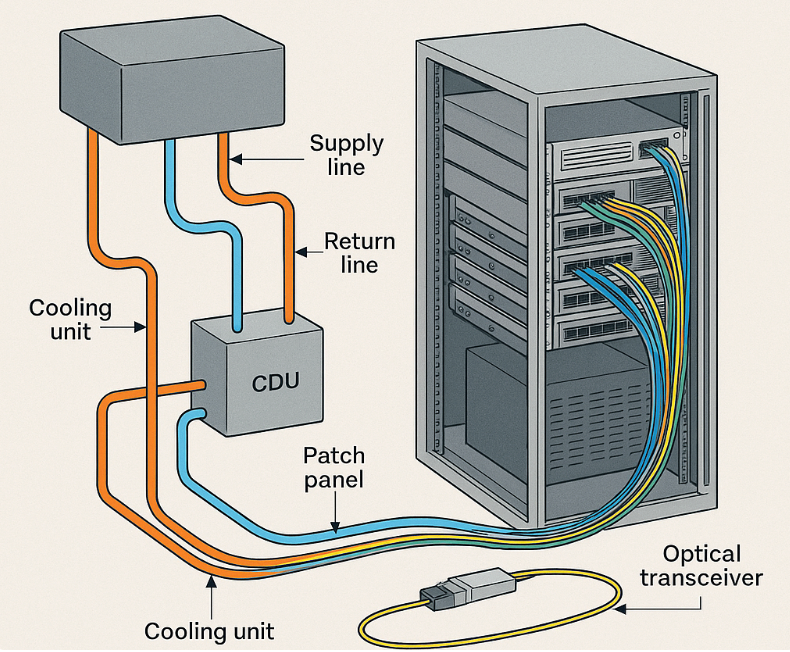

3. Keeping Fiber and Coolant Safely Separated

Always maintain at least one dry air gap between coolant hardware and optical connectors.
If condensation is unavoidable, use closed ODFs with small dehumidifiers or desiccant packs.

4. Choosing the Right Fiber Components

4.1 Cable Jackets

• Use LSZH or OFNP materials in hot aisles and near coolant manifolds.
• For exposed runs, ruggedized TPU or aramid-reinforced jackets prevent abrasion.
• Avoid routing standard jumpers near pipes carrying cold liquid.

4.2 Connectors

• MPO/MTP trunks for high-density backbones.
• SN/MDC or LC jumpers for front-panel links.
• Use APC connectors on single-mode OS2 lines to maintain return loss stability under temperature shifts.

4.3 Polarity and Testing

• Follow TIA-568.3-D polarity (Type A/B/C).
• Keep insertion loss ≤ 0.35 dB per mated pair.
• Record results together with thermal-system tests during commissioning.

5. Condensation and Humidity Management

Coolant lines often run below room temperature, creating condensation risks.
Simple measures can prevent contamination:

• Route fiber above cold plumbing.
• Form upward-facing bend radii so drips cannot track along the cable.
• Use sealed ODF enclosures in high-humidity regions.
• Never clean connectors near open coolant fittings.

6. Chemical Compatibility and Maintenance

Even non-conductive coolants can leave film residues.

• Use fiber-grade IPA and lint-free wipes only.
• Wipe and inspect any cable exposed to glycol or dielectric fluids.
• Replace if jacket softens or changes color.

Avoid general maintenance rags — many contain surfactants that attack cable sheaths.

7. Installation and Service Best Practices

• Place ODFs above or beside manifolds, not below.
• Use Velcro instead of zip ties for gentle strain relief.
• Cross fiber and coolant lines at 90° angles.
• Color-code fiber (blue) and coolant (green).
• Reserve 30–40 % spare capacity for upgrades.
• Document every route with QR or barcode labels.

These details simplify future service and prevent costly rework during rack expansion.

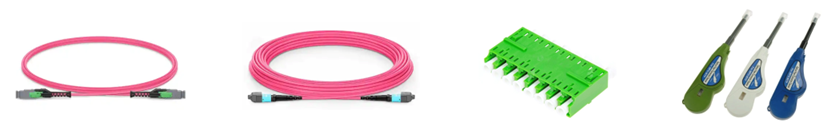

8. Typical Use Scenarios for HOLIGHT Products

• Fiber patch cords connecting liquid-cooled GPU servers within a rack.
• MPO/MTP trunks linking high-density switches and CDUs through top-of-rack pathways.
• Adapters and connectors mounted inside sealed terminal boxes or pre-terminated panels.
• Tools and cleaning kits for optical maintenance in humid environments.

Each product is factory-tested and compatible with AI, HPC, and cloud data-center deployments where liquid cooling is standard.

9. FAQ

Q1. Can standard fibers run inside immersion tanks?
No. Use sealed feedthroughs and immersion-rated pigtails only.

Q2. Which connectors are most common in liquid-cooled racks?
MPO/MTP for backbone; SN, MDC, or LC for device ports.

Q3. How can condensation be controlled around fiber?
Elevate cable paths and maintain stable humidity with enclosure dehumidifiers.

Q4. Does liquid cooling affect optical performance?
Not directly, but it changes routing and access. Keep IL ≤ 0.35 dB.

Q5. What cleaning method is safest near coolant systems?
Use fiber-grade IPA and lint-free wipes; keep distance from active coolant lines.

Q6. What does HOLIGHT supply for liquid-cooled data centers?
High-quality fiber patch cords, adapters, terminal boxes, and passive components—all factory-tested and compatible with DLC or immersion systems.
