Patch cords and crossover cables are two common types of Ethernet cables. Although they may look similar in appearance, there are significant differences in functionality and application scenarios. This article will provide an in-depth look at the characteristics of these two cables and their applications in network connections.

What are the T-568A Standard and T-568B Standard?

Before we focus on the differences between patch cords and crossover cables, let’s take a brief look at the two basic cable standards, 568A and 568B.

T-568A and T-568B are two common Ethernet connection standards. The T-568A and T-568B standards differ only in the order of the orange and green wire pairs. In most cases, the T-568B standard is more common and is widely used in business and home networks. However, in certain scenarios, such as when older telephone lines are used for network connectivity, the T-568A standard may be more suitable. If both ends of the patch cords are wired on the basis of one standard, it is a straight-through connection. If not, it is a crossover connection.

What Is a Patch Cable?

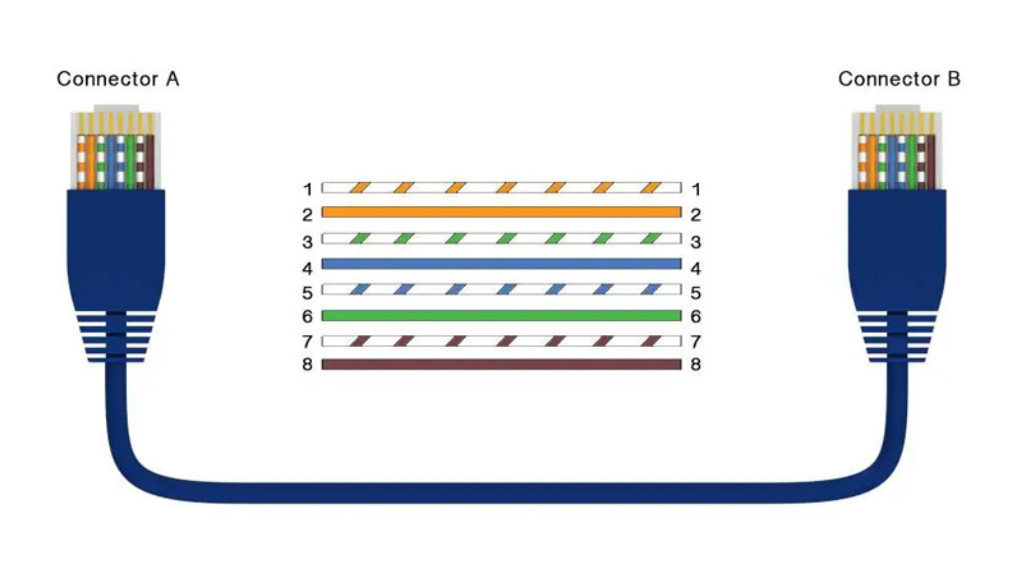

Patch cables, also referred to as straight-through cables, are widely utilized Ethernet cables within computer networks, primarily for interconnecting various devices. These patch cables come in diverse lengths and feature RJ45 connectors at both ends, following a standard configuration, typically either 568A or 568B. Specifically, pin 1 on connector A, pin 1 on connector B, pin 2 on connector B. So both sides (connector A and connector B) of the patch cable have wire arrangements with the same patch cable colors (as shown in the following picture). Patch cables play a crucial role in linking devices like computers, printers, switches, and routers within local area networks (LANs) or data centers. Their primary function is to transmit data signals, facilitating communication between devices and ensuring a robust and efficient network connection.

When need to connect a computer to a router, a patch cable is used. This straight-through cable features an RJ45 plug on one end, connecting to the computer’s Ethernet port, and another plug on the opposite end, linking to the router’s port. As data transfers between the computer and the router, it follows a direct path facilitated by the patch cable, ensuring a straight and uninterrupted connection.

Advantages of Straight-through Cable (Patch Cable)

Easy Connection: Patch cables find widespread use in Ethernet networks for linking devices like computers, routers, switches, and servers. They offer an uncomplicated and direct means to establish connections between these devices.

Versatility: Straight-through cables come in a variety of lengths, colors, and connector types, such as RJ-45 for Ethernet. It allows for versatile installations according to the specific requirements of the network.

Cost-Effective: Compared to other cable types, fiber optic patch cables are relatively more cost-effective. This cost-effectiveness makes them a practical solution for network connections, contributing to overall affordability.

What Is a CrossOver Cable?

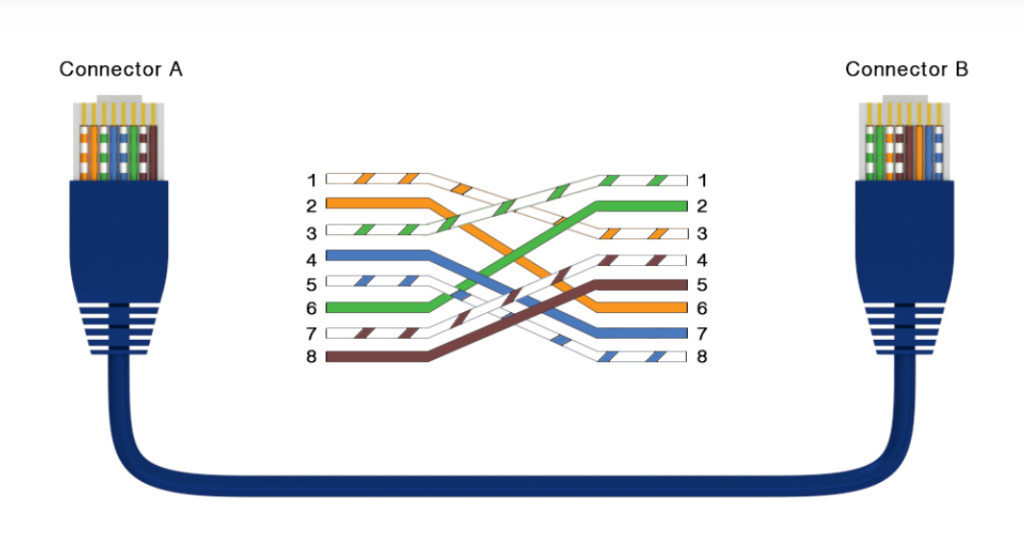

Crossover cable is another form of Ethernet cable that allows direct connection of devices without the need for intermediate devices such as switches or hubs. In contrast to the straight-through configuration found in patch cables, Ethernet crossover cables utilize a crossed wiring setup. This involves swapping or crossing the transmit (TX) and receive (RX) pairs at one end of the cable. However, the prevalence of MDIX technology in contemporary network equipment has led to a reduced reliance on Ethernet crossover cables. MDIX automatically detects the cable type and adjusts the transmit and receive pairs accordingly, diminishing the common use of Ethernet crossover cables in modern networking scenarios.

For a direct connection between two computers, an Ethernet crossover cable would be appropriate. This type of cable has a plug on one end that establishes a connection with one computer, while the plug on the other end connects to the second computer. Consequently, the data transmitted between the two computers travels directly through the Ethernet crossover cable, eliminating the need for a router or a switch.

Advantages of Crossover Cable

Simplified Network Setup: Simplify your network setup by employing crossover cables to connect devices directly, eliminating the need for extra networking equipment.

Increased Bandwidth: Ethernet crossover cables facilitate direct communication between devices, offering the prospect of heightened data transfer speeds and decreased latency when compared to connecting through a network switch or router.

Troubleshooting and Testing: Utilize crossover cables for troubleshooting and testing connectivity between devices. This approach aids in identifying whether issues stem from the network equipment or the devices themselves.

What are the Differences Between Patch Cable and Crossover Cable?

Wiring Configuration:

As previously mentioned, the primary distinction between patch cables and crossover cables lies in their wiring configurations. Patch cables follow a straight-through configuration, featuring identical connectors at both ends. Conversely, crossover cables have crossed configurations, specifically designed for the direct connection of network devices.

Device Compatibility:

Patch cables and crossover cables exhibit notable differences in terms of device compatibility. This divergence arises from their respective functions in connecting various devices such as computers, switches, routers, and servers. Patch cables facilitate seamless communication by linking the transmitting signal on one device to the receiving signal on another, offering a high level of compatibility. In contrast, crossover cables, with their crossed-wiring configuration, are well-suited for direct connections between similar devices. They are commonly employed when directly connecting two computers or two switches. However, due to their crossed-wiring nature, crossover cables may be incompatible with devices that require a standard straight-through connection.

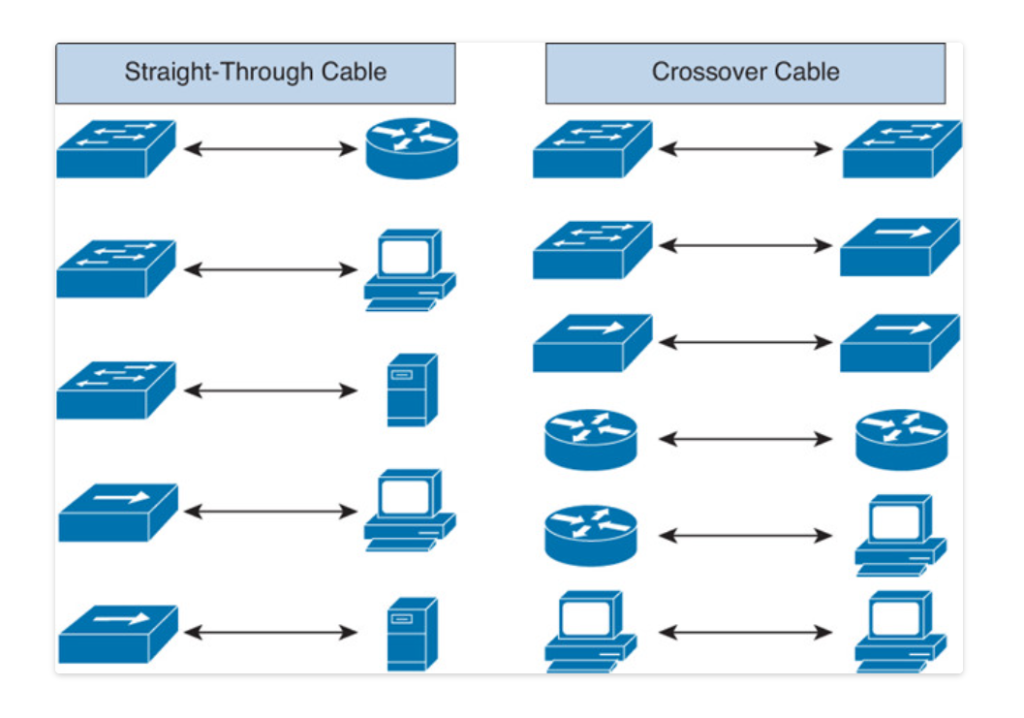

Use straight through Ethernet Cable for the Following Cabling:

• Switch to router
• Switch to PC or server
• Hub to PC or server

Use Crossover Cables for the Following Cabling:

• Switch to switch
• Switch to hub
• Hub to hub
• Router to router
• Router Ethernet port to PC NIC
• PC to PC

How to Choose Patch Cable and Crossover Cable?

When deciding between patch cords and crossover cables, it’s crucial to consider the specific network scenario. Patch cables are the preferred choice for linking different types of devices. Conversely, if a direct connection between similar devices, like linking two computers or two switches, is needed, a crossover cable is appropriate. Crossover cables feature a cabling configuration that enables direct communication without the necessity of switches or hubs.

However, the advent of automated MDIX technology in modern network equipment has significantly reduced the need for crossover cables. This technology automatically detects and adjusts cable types, making it more convenient. In most instances, using patch cords is adequate for both types of connections, rendering them a more versatile and practical option.

HOLIGHT is a professional patch cord manufacturer that produces various fiber optic patch cords, including standard patch cord, special patch cord, pigtail, waterproof patch cord, MPO/MTP patch cord.

Conclusion

In conclusion, patch cords and crossover cables may appear similar, but they significantly differ in their cable configurations and compatibility with specific connected devices. Identifying these differences makes the process of selecting the appropriate patch cable much simpler, ensuring an efficient and stable network connection.
