Top Uses of Fiber Patch Cords in FTTH Projects [With Expert Tips]

Fiber Patch Cords—The Unsung Hero of FTTH

In a world where fast internet is a basic utility, FTTH (Fiber To The Home) deployment is exploding—particularly across Latin America, Southeast Asia, and Eastern Europe. But while network planners focus on OLTs, splitters, or terminal boxes, the small yet mighty fiber patch cord often goes unnoticed.

Big mistake.

From connecting optical terminals to user-end equipment, patch cords are what make the entire FTTH infrastructure operational. A weak link here can jeopardize network performance, customer satisfaction, and ultimately, your brand reputation.

In this guide, we break down the top use cases, common pain points, and what fiber buyers should know before placing that next order.

What Is a Fiber Patch Cord and Why It Matters in FTTH?

Fiber patch cords are short-length optical cables with connectors on both ends, used for signal transmission between devices. In FTTH, they:

  • Connect ONUs/ONTs to wall outlets
  • Bridge optical splitters with terminal boxes
  • Connect fibers from main cable to patch panels

🎯 Why it matters: A poor-quality patch cord = insertion loss + long-term network instability. And for FTTH where signal strength is already stretched by passive components, every dB counts.

Core Use Cases of Patch Cords in FTTH Projects

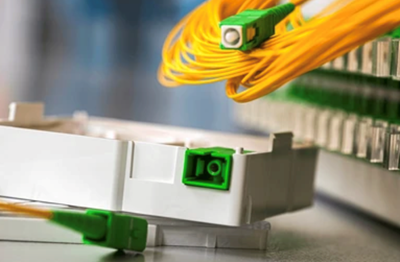

1.      Last-Mile Connection Between Outlet and Router

Inside homes, fiber patch cords are used to connect wall-mounted faceplates or termination boxes to ONT devices. These cords must be:

  • Soft, bend-resistant (e.g., G.657.A2 compliant)
  • Aesthetically neutral (white/beige)
  • Available in various lengths (1m, 2m, 3m, etc.)

🛠️ In a Colombian residential FTTH project, HOLIGHT supplied LC/APC simplex patch cords with 2mm LSZH jackets—reducing signal complaints by 45% due to high bend-resistance.

2.      Connecting Splitters to Terminal Boxes

In multi-dwelling units (MDUs), indoor or outdoor terminal boxes require patch cords to bridge:

  • PLC splitters to patch panels
  • Pigtail splicing trays to adapter ports

Common connector types: SC/APC, LC/UPC (depending on splitter design).

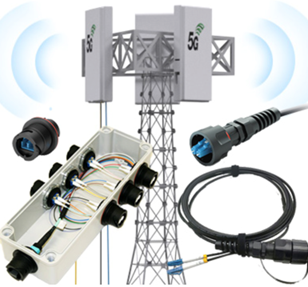

3.      FTTH Distribution Cabinet Interconnections

In outdoor cabinets, pre-terminated patch cords (ODVA, PDLC types) provide waterproof, dustproof connections from splitter outputs to distribution frames.

Key features here include:

  • IP67/68 rating
  • Thickened outdoor jacket (7.0mm, PE or armored)
  • UV-resistant housing

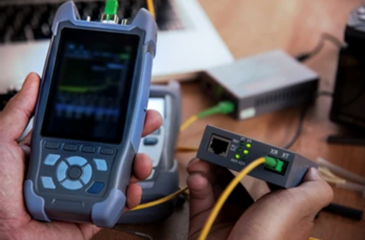

4.      Test & Maintenance Loops

Technicians often use SC/UPC or LC/UPC patch cords for:

  • OTDR testing
  • Light source/power meter connection
  • Quick bypass troubleshooting

🔧 In Ecuador, a telecom installer saved over 30% maintenance time by pre-organizing 3m SC/UPC patch cords for quick-loopback tests.

Key Benefits of Choosing the Right Patch Cord

FeatureBenefit
Low Insertion Loss (≤0.2dB typical)Reliable high-speed signal
G.657.A2 FiberTight-bend tolerance in compact ducts
LSZH JacketsSafer indoor installations
No MOQ (like HOLIGHT)Easier stock planning for small projects
Factory-testedTime saved on field testing

How to Choose: SC vs LC, UPC vs APC, Simplex vs Duplex?

Use CaseRecommended Type
FTTH Home OutletSC/APC or LC/APC Simplex
Dense CabinetLC Duplex (for space saving)
Maintenance/TestSC/UPC Simplex
Outdoor CabinetODVA/PDLC SC or LC

🧠 Pro Tip: APC connectors are used for video and high-bandwidth signals due to lower back reflection, while UPC is fine for general internet/data.

    What to Check Before Procurement

    Before placing an order for 1,000+ patch cords, make sure you confirm:

    • Connector Polish: APC vs UPC
    • Fiber Type: G.657.A2 recommended for FTTH
    • Jacket Material: LSZH for indoor, PE or armored for outdoor
    • Core Type: Simplex (1 core) or Duplex (2 cores)
    • Testing: IL and RL test report per batch
    • Packaging: Individual bagging + label for traceability

    Common Deployment Issues (And How to Avoid Them)

    ProblemCauseSolution
    Signal LossDirty connectorsUse cleaning pens before connection
    Patch Cord Too StiffWrong jacket (e.g., PE used indoor)Use LSZH 2.0mm for interior
    Wrong ConnectorConfusion UPC vs APCColor coding: Green = APC, Blue = UPC

    Key Takeaways

    • FTTH projects rely heavily on quality patch cords to maintain signal stability
    • Pre-terminated options reduce installation time and error
    • Connector choice (SC/LC, UPC/APC) must match system design
    • No-MOQ, short-lead time partners like HOLIGHT simplify your procurement process

    CTA

    Ready to upgrade your FTTH reliability?
    Explore our custom patch cords at
    🔗 www.holightoptic.com
    🔗 www.ftthfiberoptic.com

    FAQ

    Can I get patch cords in custom lengths like 1.5m or 2.5m?
    Yes, lengths are fully customizable.

    What’s the difference between SC/APC and SC/UPC?
    APC has an angled polish, lower back reflection; UPC is flat-polished and cheaper.

    Can I get multi-color patch cords for identification?
    Absolutely. Yellow, aqua, blue, orange, green—based on your coding needs.

    How long does shipping to Europe take?
    Normally 5–7 working days via express, or 15–25 days via freight.

    Can you add labels like “Living Room” or “ONU1” on each cord?
    Yes, labeling and barcode options available.

    Do you offer armored patch cords for outdoor distribution?
    Yes, armored and waterproof types are available (PDLC, FullAXS, ODVA).

    Is there a risk of fiber break during installation?
    No, we use bend-insensitive G.657.A2 fibers designed for tight routing.

    Are all patch cords tested before shipment?
    Yes, 100% tested for insertion loss and return loss.
