In the ever-evolving landscape of data communication, the demand for faster and more reliable connectivity has led to the development of advanced optical transceiver modules. Among these, the CFP (C form-factor pluggable) optical transceiver modules stand out as a key player, providing high-speed and high-capacity data transmission for various applications. In this comprehensive article, we will delve into the world of CFP optical transceiver modules, exploring their features, applications, and the steps involved in using them effectively.

What is the CFP Optical Transceiver Module?

The CFP optical transceiver module is a standardized, hot-swappable optical transceiver used for high-speed data transmission in telecommunications and data center networks. The term “C form-factor pluggable” refers to the specific form factor and electrical interface of these modules, ensuring compatibility and interchangeability among different vendors and platforms.

Form Factors of CFP Modules

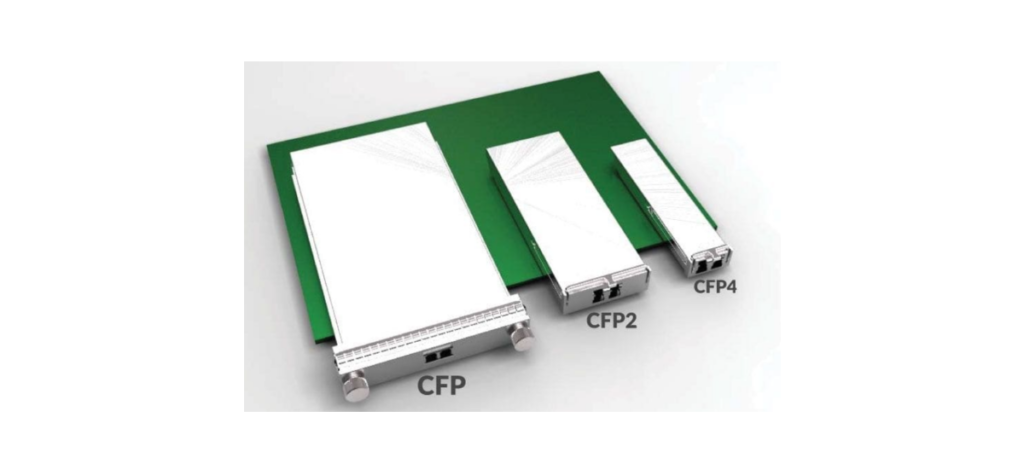

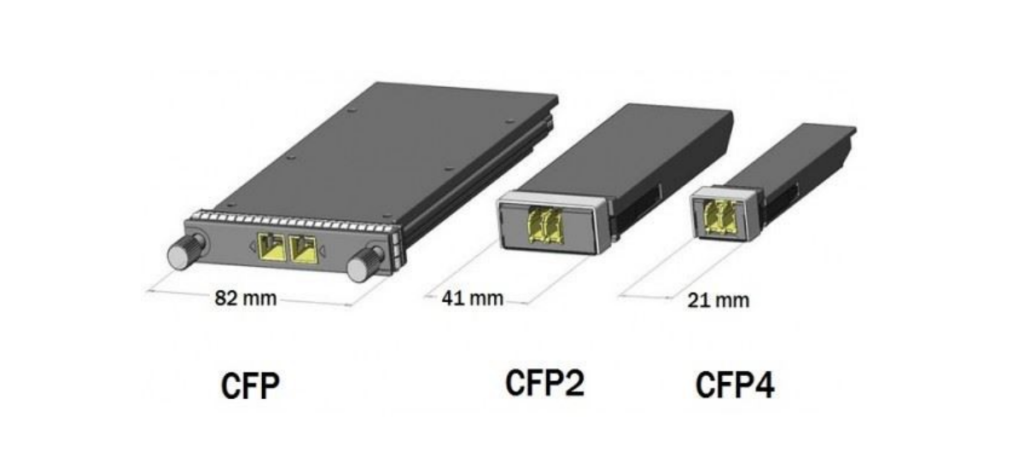

There are several types of CFP modules, each designed for specific applications. The most common types include:

CFP: Standard CFP modules are used for 100Gbps (Gigabits per second) applications.

CFP2: CFP2 modules are a smaller form factor designed to support 100Gbps and 200Gbps applications.

CFP4: CFP4 modules are even smaller and support 100Gbps, 200Gbps, and 400Gbps applications.

CFP8: The latest iteration, CFP8 modules, support 400Gbps and beyond.

Key Features of CFP Optical Transceiver Modules

Understanding the features of CFP optical transceiver modules is crucial for assessing their suitability for specific networking requirements. Some key features include:

Data Rate and Reach

CFP modules support various data rates, typically ranging from 100Gbps to beyond 400Gbps, depending on the specific form factor. Additionally, they are designed to operate over different reaches, allowing for flexibility in network design.

Hot-Pluggable

One of the notable advantages of CFP modules is their hot-swappable nature. This means that they can be replaced or upgraded without powering down the entire system, minimizing downtime and disruptions in network operations.

Multi-Mode and Single-Mode Options

CFP modules are available in both multi-mode and single-mode configurations, catering to diverse network architectures and deployment scenarios.

Forward Error Correction (FEC)

To enhance signal integrity and reliability, many CFP modules incorporate FEC technology, which helps correct errors in the transmitted data.

Optical Monitoring

CFP modules often include features for monitoring and managing optical parameters, such as power levels and temperature, to ensure optimal performance.

Applications of CFP Optical Transceiver Modules

CFP optical transceiver modules find applications in a wide range of networking environments, supporting the growing demand for high-speed data transmission. Some key applications include:

Data Center Interconnects

In data centers, where massive amounts of data are processed and transferred, CFP modules play a crucial role in providing high-speed interconnectivity between switches, routers, and other networking equipment.

Telecommunications Networks

Telecommunication service providers leverage CFP modules to meet the increasing bandwidth requirements of their networks, supporting high-speed data transmission over long distances.

Enterprise Networking

Enterprises with demanding networking needs, such as those with large-scale operations or high-density computing, benefit from the high-performance capabilities of CFP optical transceiver modules.

5G Networks

As 5G networks continue to expand, CFP modules are instrumental in supporting the high data rates required for the efficient functioning of 5G infrastructure.

How to Use CFP Optical Transceiver Modules

Effectively using CFP optical transceiver modules involves several steps, from installation to maintenance. Here is a guide on how to use CFP modules in your network:

Module Installation

Ensure Compatibility: Before installation, verify that the CFP module is compatible with the host device. Check for matching form factors, data rates, and other specifications.

Handle with Care: CFP modules are delicate optical devices, so handle them with care. Use appropriate anti-static precautions, and avoid touching the optical connectors.

Insertion and Removal: Follow the manufacturer’s guidelines for inserting and removing CFP modules. Typically, they are designed for hot-plugging, but it’s essential to follow the recommended procedures.

Fiber Connection

Clean Connectors: Ensure that the fiber connectors are clean before inserting them into the CFP module. Contaminated connectors can degrade signal quality.

Check Polarity: Confirm the correct polarity of the fiber connectors to ensure proper signal transmission.

Powering Up

Power Sequence: Follow the recommended power-up sequence provided by the manufacturer to prevent potential damage to the CFP module or the host device.

Monitor Power Levels: Regularly monitor the power levels of the CFP module using the built-in optical monitoring features. This helps in identifying any issues and maintaining optimal performance.

Network Configuration

Configure Network Settings: Adjust the network settings on the host device to match the specifications of the CFP module. This includes configuring data rates, modulation formats, and other parameters.

FEC Configuration: If the CFP module includes FEC, configure the FEC settings according to the network requirements.

Troubleshooting and Maintenance

Diagnostic Tools: Use diagnostic tools provided by the manufacturer to troubleshoot any issues with the CFP module. These tools can help identify problems related to signal quality, temperature, and other parameters.

Regular Inspections: Conduct regular inspections of the CFP module, checking for any signs of physical damage or contamination. Replace modules that show signs of wear or degradation.

Firmware Updates: Keep the firmware of both the CFP module and the host device up-to-date to benefit from improvements, bug fixes, and new features.

Future Trends and Developments

As technology continues to advance, the landscape of optical transceiver modules, including CFP modules, is expected to undergo further transformations. Some potential future trends and developments include:

Higher Data Rates

The demand for higher data rates is relentless, and future CFP modules may support even faster transmission speeds to keep up with evolving network requirements.

Improved Power Efficiency

Efforts to enhance power efficiency in optical transceiver modules are ongoing, aiming to reduce the energy consumption of high-speed networks.

Integration with Coherent Technology

Integration with coherent technology may become more prevalent, enabling better performance in challenging optical environments and longer-distance transmissions.

Enhanced Monitoring and Management

Future CFP modules may include more advanced monitoring and management features, providing network operators with greater visibility and control over their optical networks.

Conclusion

CFP optical transceiver modules have become integral components in modern high-speed data networks, offering a combination of performance, flexibility, and compatibility. Understanding their features, applications, and the steps involved in using them is crucial for network engineers and administrators.
