1. Introduction

In modern optical communication systems, ensuring the reliability and stability of network devices is critical. From hyperscale data centers powering cloud services to telecom operators managing nationwide FTTH deployments, every device port must be tested before carrying real user traffic. This is where the fiber loopback module comes in.

A fiber loopback module is a compact diagnostic tool that allows engineers to verify whether an optical port is functioning properly. By looping the transmitted signal (Tx) directly back to the receiving end (Rx), it enables a closed test without requiring a live network connection.

This simple yet powerful principle makes loopback modules indispensable for:

• Deployment verification – checking devices during installation.
• Troubleshooting – isolating whether faults lie in the device or the cabling.
• Research & development – validating optical transceivers under controlled conditions.

In this blog, we will explore the definition, types, working principles, applications, and specifications of fiber loopback modules—so you can fully understand why they are essential tools in optical networking.

2. What Is a Fiber Loopback Module?

A fiber loopback module (sometimes called a loopback plug or loopback adapter) is a short fiber assembly designed for testing. One end connects to the transmit port of an optical device, and internally the signal is routed back into the receive port of the same device.

This closed-loop path allows the device to “talk to itself,” confirming that both its transmission and reception functions are working correctly.

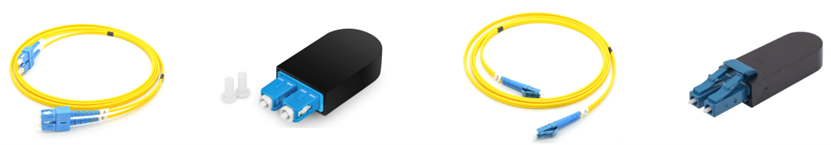

2.1 Difference from Fiber Patch Cords

• Fiber Patch Cord: Designed for connecting two separate devices in a network. Its function is to transmit data traffic between equipment.
• Fiber Loopback Module: Designed purely for testing. It does not transmit traffic between devices but rather returns the signal to the same device for verification.

2.2 Difference from Copper Loopback Plugs

• Copper loopbacks (RJ45 loopback plugs) are used for Ethernet ports.
• Fiber loopback modules are specifically designed for optical interfaces such as LC, SC, FC, or MPO.
• While both serve similar diagnostic purposes, fiber loopbacks are built to handle optical signals across SM/MM networks and are essential in optical communication testing.

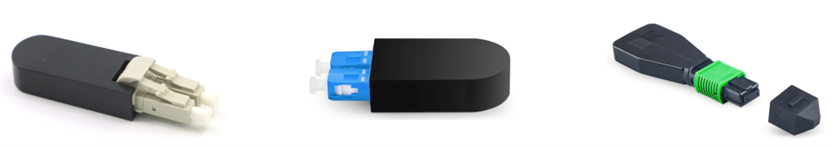

2.3 Typical Form Factors

• LC Loopback Module: Compact, widely used in SFP and SFP+ testing.
• SC Loopback Module: Common in legacy telecom and datacom equipment.
• MTP/MPO Loopback Module: Supports multi-fiber parallel optics, ideal for 40G/100G/400G high-density applications.

Each type is available in singlemode (OS1/OS2) and multimode (OM1–OM5) versions, with UPC or APC polish depending on return loss requirements.

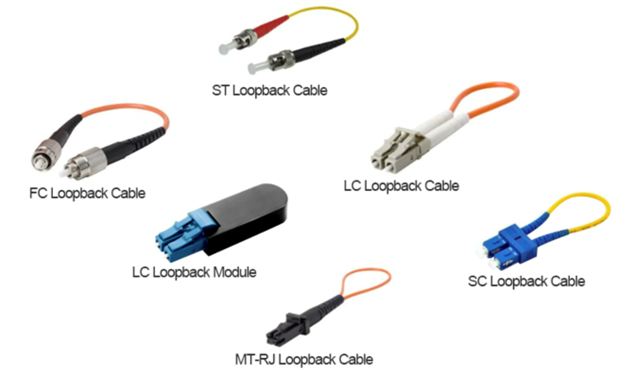

3. Types of Fiber Loopback Modules

Fiber loopback modules are available in different designs to meet the diverse requirements of testing environments. They can be classified based on fiber type, connector type, polish type, and design structure.

3.1 Classification by Fiber Type

• Singlemode Loopback Modules (OS1/OS2):
  • Built with 9/125 μm singlemode fibers.
  • Optimized for long-distance and high-precision testing.
  • Typically used for telecom backbones, metro networks, and data center interconnects.
  • Specifications: insertion loss ≤ 0.3 dB; return loss ≥ 50 dB (UPC) / ≥ 60 dB (APC).
• Multimode Loopback Modules (OM1/OM2/OM3/OM4/OM5):
  • Built with 50/125 μm or 62.5/125 μm multimode fibers.
  • Suitable for short-distance, high-speed environments like LANs and enterprise networks.
  • OM4 and OM5 multimode loopbacks are widely used in 40G/100G parallel optics verification.
  • Specifications: insertion loss ≤ 0.3 dB; return loss ≥ 35 dB.

3.2 Classification by Connector Type

• LC Loopback:
  • Compact and most widely used.
  • Perfect fit for SFP/SFP+ optical transceiver testing.
• SC Loopback:
  • Larger connector body.
  • Commonly used in legacy FTTx and OLT systems.
• FC Loopback:
  • Threaded design ensures stable connection.
  • Often used in lab testing and environments requiring vibration resistance.
• ST Loopback:
  • Bayonet-style connector.
  • More common in older networks, gradually replaced by LC/SC.
• MPO/MTP Loopback:
  • Supports 8/12/16/24 fibers in a single connector.
  • Designed for parallel optics in 40G/100G/400G applications.
  • Essential for testing high-density data center cabling systems.

3.3 Classification by Polish Type

• UPC (Ultra Physical Contact):
  • Return loss ≥ 50 dB.
  • Common in Ethernet, GPON, and general telecom testing.
• APC (Angled Physical Contact, 8° angle):
  • Return loss ≥ 60 dB.
  • Used in CATV, WDM, and high-precision optical testing where back-reflection must be minimized.

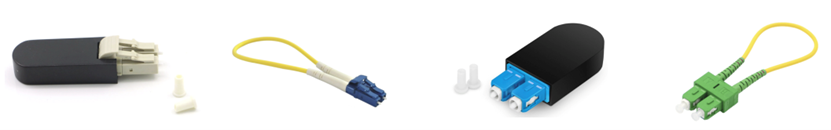

3.4 Classification by Design

• Loopback Module (with housing):
  • Compact case that integrates connectors and fiber loop.
  • Durable, portable, widely used in field testing.
• Loopback Cable (bare fiber jumper):
  • Resembles a patch cord bent into a loop.
  • Cheaper but less durable, more common in labs.

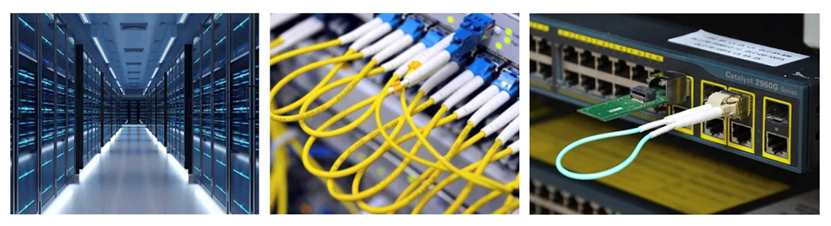

4. How Does a Fiber Loopback Module Work?

The working principle of a fiber loopback module is straightforward but highly effective.

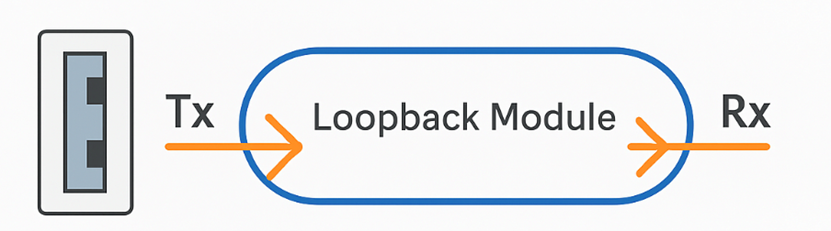

4.1 Signal Path

Inside the loopback device:

• The transmit port (Tx) of the equipment sends out an optical signal.
• The loopback module routes this signal back internally into the receive port (Rx) of the same equipment.
• This creates a closed loop circuit, allowing the device to transmit and receive simultaneously without external traffic.

2 Testing Mechanism

• If the equipment port lights up and receives the same signal it sent, the basic Tx/Rx functions are confirmed.
• If there is a mismatch or no return signal, engineers know there is a fault in the port or transceiver.

4.3 Advantages of Loopback Testing

• No live network required: Ideal for lab and deployment verification.
• Fast diagnosis: Can instantly confirm whether a device port is operational.
• Isolates failures: Helps distinguish between cable issues and equipment issues.
• Repeatable and consistent: Provides standardized test results.

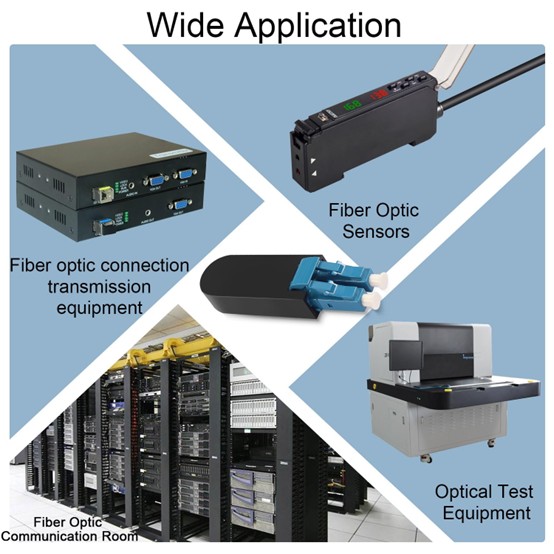

5. Applications of Fiber Loopback Modules

Fiber loopback modules are small in size but have critical importance in optical communication. Their role spans across equipment vendors, telecom operators, data centers, and enterprise networks.

5.1 Equipment Testing

• Optical Transceiver Verification:
  • SFP, SFP+, QSFP+, QSFP28, CFP, and other pluggable modules can be tested with loopback modules.
  • Ensures that a transceiver’s Tx and Rx channels function correctly before deployment.
• Switches and Routers:
  • Network engineers use loopback modules to test optical ports on switches, routers, and OLTs.
  • Link lights indicate whether ports are working properly.
• OTN and DWDM Systems:
  • In backbone networks, loopback modules help confirm optical channel integrity before adding live traffic.

5.2 Deployment Verification

During network rollouts:

• Engineers plug loopback modules into new devices to confirm that all ports are functional.
• This is especially critical in FTTH deployments, where hundreds of ports may need to be tested quickly.
• Prevents costly service disruptions after customer activation.

5.3 Troubleshooting

• Isolating Device vs Cable Faults:
  • If a port fails with live fiber but passes loopback test → problem lies in the cable or external connection.
  • If a port fails even with loopback → problem lies in the device or transceiver.
• Error Diagnosis:
  • Loopback tests can reveal issues such as high bit-error rates (BER), poor optical power levels, or defective transceivers.

5.4 Research & Development

• Fiber loopback modules are widely used in R&D labs by equipment manufacturers.
• Engineers can stress-test transceivers and optical systems under different conditions without needing a full network setup.

5.5 Data Center Applications

• High-Density Environments:
  • MTP/MPO loopback modules are indispensable in hyperscale data centers.
  • Used to test 40G/100G/400G parallel optics links before deploying large-scale server racks.

6. How to Use a Fiber Loopback Module – Step by Step

Loopback testing is designed to be simple and efficient. Below is a practical step-by-step guide that technicians follow:

Step 1: Identify the Port Type

• Confirm whether the device uses LC, SC, FC, ST, or MPO/MTP interface.
• Select the correct singlemode or multimode loopback module accordingly.

Step 2: Insert the Loopback Module

• Gently insert the module into the optical port.
• Ensure full insertion to establish a complete Tx → Rx path.
• For MPO/MTP modules, make sure key-up/key-down orientation matches.

Step 3: Initiate the Test

• Power on the equipment.
• Run diagnostic software or built-in tools to send test signals.
• In simpler cases (like switch ports), simply check whether the link light turns on.

Step 4: Observe the Results

• If transmit and receive match, the port is functional.
• If errors occur (e.g., excessive BER, loss of signal), further investigation is needed.

Step 5: Isolate the Problem

• If loopback test passes but live fiber connection fails → issue lies outside (cabling, patch panel, splicing).
• If loopback test fails → issue is with the device port or transceiver.

Step 6: Disconnect and Restore

• After testing, remove the loopback module.
• Reconnect the device to the live fiber link.
• Store loopback modules properly to prevent dust or contamination.

7. Technical Specifications to Consider

When evaluating fiber loopback modules, engineers must review several performance and durability metrics to ensure reliable testing results.

7.1 Insertion Loss (IL)

• Definition: The amount of optical power lost when light passes through the loopback module.
• Typical Values:
  • Singlemode: ≤ 0.3 dB
  • Multimode: ≤ 0.3 dB
• Why It Matters: Lower IL ensures that test results closely represent real-world network performance.

7.2 Return Loss (RL)

• Definition: The amount of light reflected back toward the source, measured in decibels.
• Typical Values:
  • UPC polish: ≥ 50 dB
  • APC polish: ≥ 60 dB
  • Multimode: ≥ 35 dB
• Why It Matters: Higher RL reduces back-reflection, which is critical in high-speed and WDM systems.

7.3 Durability

• Mating Cycles: Premium loopback modules support over 1,000 insertion/removal cycles without performance degradation.
• Why It Matters: Ensures reliability for repeated lab and field testing.

7.4 Data Rate Compatibility

• Fiber loopback modules must support the transmission speeds of the devices under test.
• Supported Rates:
  • Legacy: 1G/2.5G/10G
  • Modern: 25G/40G/100G/400G and beyond
• Why It Matters: Prevents mismatch between loopback module and device under test.

7.5 Protocol Support

• Loopback modules can be used across multiple communication standards:
  • Ethernet
  • Fibre Channel
  • InfiniBand
  • SONET/SDH
• Why It Matters: Expands versatility across industries and equipment types.

8. Benefits of Using Fiber Loopback Modules

Fiber loopback modules provide multiple operational and financial advantages for network operators, equipment vendors, and field technicians.

8.1 Easy to Use

• No software installation or complex calibration.
• Plug-and-play design, usable even by junior technicians.

8.2 Cost-Effective

• Low-cost investment compared to complex optical test equipment.
• Reduces downtime by quickly identifying faulty ports or transceivers.

8.3 Portable and Compact

• Small, lightweight modules easily carried in toolkits.
• Especially useful for field testing in FTTH rollout projects or on-site data center verification.

8.4 Ensures Stability and Reliability

• Detects potential issues early before they cause network outages.
• Helps operators deliver consistent service quality to end users.

8.5 Supports a Wide Range of Devices

• Compatible with multiple connector types (LC, SC, MPO).
• Useful across generations of optical devices, from legacy switches to 400G transceivers.

9. How to Choose the Right Fiber Loopback Module

Selecting the correct loopback module is crucial to achieving accurate and efficient test results.

9.1 Match Fiber Type

• Singlemode (OS1/OS2): For long-haul and high-precision testing.
• Multimode (OM1–OM5): For short-range and high-bandwidth testing.

9.2 Match Connector Type

• LC for modern SFP/SFP+ ports.
• SC for OLT and legacy devices.
• MPO/MTP for high-density 40G/100G/400G environments.

9.3 Match Polish Type

• UPC polish for general Ethernet and telecom testing.
• APC polish for CATV, DWDM, and sensitive optical systems requiring high RL.

9.4 Consider Data Rate Compatibility

• Ensure loopback module supports device speeds (1G–400G+).
• Check manufacturer’s datasheet for compliance with Ethernet, Fibre Channel, and InfiniBand rates.

9.5 Check Quality and Durability

• Verify insertion loss (<0.3 dB) and return loss (>40–60 dB depending on polish).
• Look for modules with high mating cycle durability (≥1,000 insertions).

10. Conclusion

Fiber loopback modules may appear small and simple, but they are indispensable diagnostic tools in modern optical communication. From verifying transceivers and switch ports to troubleshooting field deployments and testing high-density MPO systems, loopback modules enable engineers to quickly and accurately assess equipment health.

By understanding the types (singlemode, multimode, LC, SC, MPO), the technical specifications (insertion loss, return loss, data rate compatibility), and the step-by-step usage method, network professionals can deploy loopback testing with confidence.

At a time when network performance is directly tied to business continuity, fiber loopback modules ensure that every device is tested, validated, and ready for reliable service.

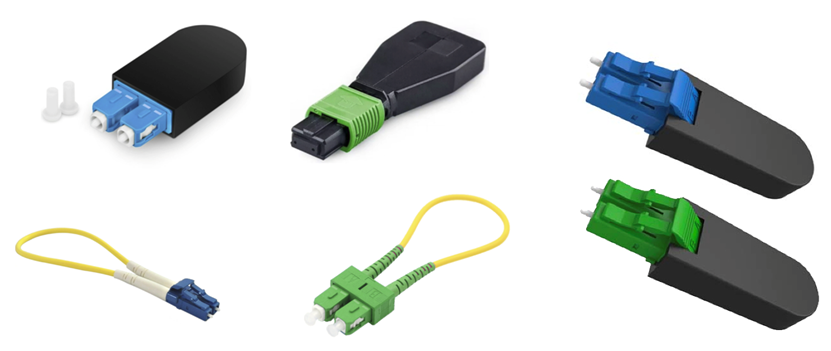

👉 Why Choose HOLIGHT for Fiber Loopback Modules?

HOLIGHT provides a complete portfolio of fiber loopback modules designed for:

• LC, SC, MPO/MTP connectors
• Singlemode OS2 and Multimode OM1–OM5
• UPC and APC polish types
• Speeds up to 400G+

With low insertion loss, high return loss, and durable housing, our loopback solutions are trusted by telecom operators, system integrators, and data center providers worldwide.
