If you have doubts about the difference between fiber patch cords and fiber pigtails, this article will help you understand their main differences.
What is Fiber Patch Cord?
The Fiber Optic Patch Cord, also referred to as a fiber optic patch cable or fiber jumper, is a specialized cable designed for transmitting data signals using light waves in fiber optic communication systems. It serves as a critical link in connecting various optical components, such as transceivers, switches, and routers, to facilitate the seamless exchange of data within a network.
The Structure of Fiber Patch Cords
Core: At the heart of the Fiber Optic Patch Cord is the core, which is typically made of glass or plastic fibers. The core is responsible for carrying the light signals that encode data. The choice of material for the core influences factors like signal transmission speed and overall performance.
Cladding: Surrounding the core is the cladding layer, a coating that reflects light back into the core. This reflective property helps maintain the integrity of the light signals by preventing them from escaping the core. It is a critical component for ensuring efficient data transmission.
Buffer Coating: The core and cladding are usually protected by a buffer coating, which adds an extra layer of insulation. This coating shields the fibers from external factors such as physical stress and moisture, contributing to the overall durability and longevity of the patch cord.
Connector Ends: Fiber Optic Patch Cords come equipped with connectors at both ends, facilitating easy connections to various networking devices. Common connector types include LC, SC, and ST, each with its own design and functionality. The choice of connector depends on factors such as application, space constraints, and ease of use.
Jacket: The outermost layer of the patch cord is the jacket, a protective covering that shields the cable from environmental factors like abrasion, chemicals, and ultraviolet (UV) radiation. The jacket enhances the overall robustness of the cable and ensures its suitability for different deployment environments.
Understanding the design structure of Fiber Optic Patch Cords is essential for selecting the right type based on specific network requirements and applications. For a more in-depth knowledge about fiber optic patch cords, we invite you to browse our detailed blog post.
What is Fiber Pigtail?

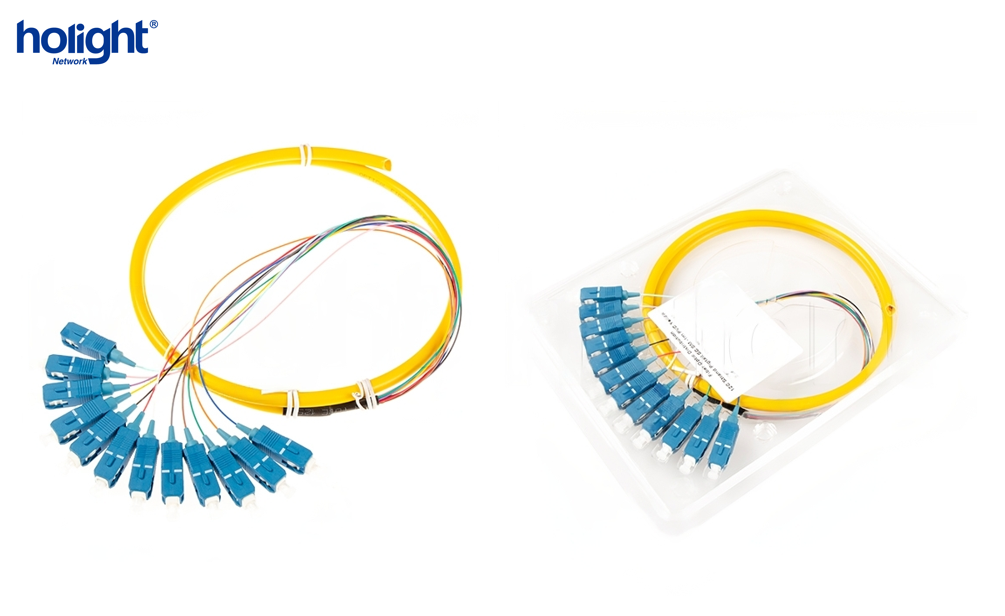

The Fiber Pigtail is a short, fiber optic cable with an exposed and pre-terminated connector at one end, and the other end is left unterminated or may have a protective connector. It serves as a crucial element in fiber optic networks, providing a connection point for various optical devices and components.
Structure of Fiber Pigtail
Fiber Optic Cable：The fiber optic cable is a type of cable that transmits data using pulses of light through thin strands of glass or plastic fibers. These fibers are designed to carry large amounts of information over long distances with minimal signal loss.
Pre-terminated Connector: One end of the fiber pigtail features a pre-installed connector. Common connectors include SC, LC, and ST, depending on the application and network requirements.
Unterminated or Protective Connector: The other end may be left unterminated (bare fiber) or terminated with a protective connector. The protective connector shields the fiber end from environmental factors and damage.
Flexible Jacket: The cable is encased in a flexible outer jacket, providing protection against physical stress, moisture, and other environmental elements.

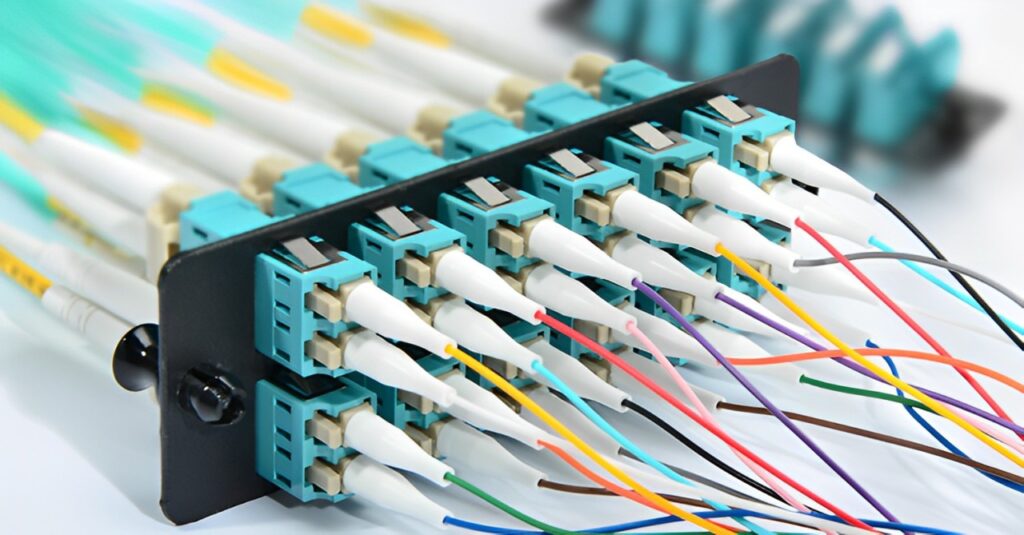

Use Cases and Scenarios Where Pigtail Cables Are Preferred
- Splicing and Termination Points: Pigtail Cables are frequently used at splicing and termination points in a fiber optic network, providing an accessible interface for connecting to devices or patch panels.
- Telecommunication Cabinets: In telecommunication cabinets and distribution frames, Pigtail Cables are used to link longer trunk cables to the network equipment, enabling efficient connectivity.
- Network Expansion and Upgrades: When expanding or upgrading a fiber optic network, Pigtail Cables are valuable for creating new connections without requiring extensive changes to existing cabling infrastructure.
- Deployment of fiber-to-the-home (FTTH) Connections: Fiber pigtails are commonly used in FTTH installations to connect fiber distribution points to fiber optic network terminals (ONTs) at the customer premises. Their flexibility and pre-terminated connectors simplify the installation process.
- Testing and Troubleshooting: Pigtail Cables are useful in testing and troubleshooting scenarios, allowing easy access to optical connections for diagnostic purposes.
In summary, Pigtail Cables play a crucial role in fiber optic networks by providing a flexible and easily deployable means of connecting longer cables to network components. Their structure, featuring pre-terminated connectors and short lengths, makes them particularly useful in various scenarios, from network expansion to testing and maintenance.
Key Differences Between Fiber Patch Cord and Pigtail Cable
1. Connectors:
Fiber Patch Cord: Fiber patch cords come with connectors on both ends. The connectors may vary and include types like LC, SC, ST, etc. These connectors enable direct and flexible connections between networking devices, making patch cords suitable for diverse applications in different network environments.
Pigtail Cable: Pigtail cables feature a pre-terminated connector at one end, leaving the other end either unterminated or terminated with a protective connector. The connectors on pigtails are commonly used for splicing or connecting to devices in specific network locations.
2. Functionality:
Fiber Patch Cord: Fiber patch cords are designed for direct point-to-point connections between devices. They serve to establish reliable and high-bandwidth links, making them integral for data transmission in various applications such as data centers, LANs, and telecommunications networks.
Pigtail Cable: Pigtail cables function as connection points in fiber optic networks. They provide a convenient and organized way to connect longer cables to devices or distribution panels. Pigtails are often used in termination points, splicing, and areas where a shorter cable is needed.
3. Usage:
Fiber Patch Cord: Fiber patch cords are commonly used in data centers, telecommunications networks, LANs, and various applications requiring direct connections between devices.
Pigtail Cable: Fiber pigtails are frequently employed at termination points, splicing locations, or specific network areas where shorter cable lengths are needed.
4. Installation:
Fiber Patch Cord: Installation of fiber patch cords involves connecting devices with the appropriate connectors on each end. This is a straightforward process, making patch cords suitable for quick installations and network modifications. They are often used for temporary or permanent connections.
Pigtail Cable: The installation of pigtail cables may involve splicing or connecting the pre-terminated end to devices or patch panels. Pigtails are commonly used in scenarios where a shorter cable is needed, and they facilitate organized and efficient termination of optical fibers within a network.
Understanding these key differences in length, connectors, functionality, and installation methods is crucial for selecting the most appropriate solution based on specific network requirements and applications.
Conclusion:
The above is the entire content of this article. If you need fiber patch cords or fiber pigtails, please feel free to contact us at sales@holightoptic.com. Holight provides various single mode and multi-mode fiber patch cords and fiber pigtails. These patch cords and pigtails offer low insertion losses and excellent repeatability. No matter what style of fiber optic patch cord you want, based on our extensive experience, we can manufacture it to your specific needs.
