Introduction: A Smart Move or Overkill?

For network architects under pressure to scale fast, reduce rack space, and avoid a cable jungle, multi-core fiber patch cords are becoming a top-tier choice. But when is it really the right time to use them?

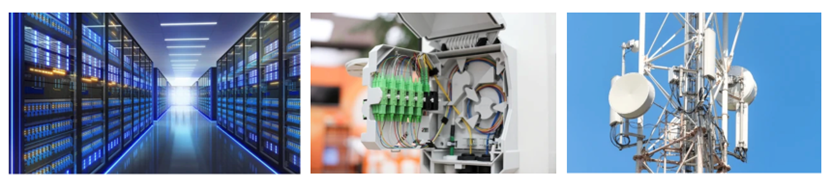

This guide walks you through exactly when, where, and why multi-core jumpers outperform simplex or duplex models—especially for FTTH aggregation, 5G backhaul, and hyperscale data centers.

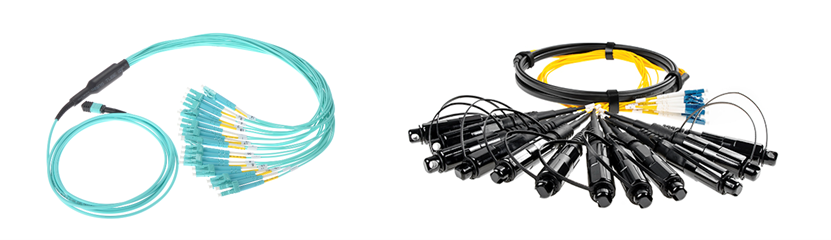

What Is a Multi-Core Fiber Patch Cord?

A multi-core patch cord (often MPO/MTP) contains multiple individual fibers (4/8/12/24/48+) in a single jacket, terminated on each end with either MPO or breakout connectors like LC/SC.

Key Features:

• Core counts from 4 to 48+
• Compact structure, ideal for high-density cabling
• Available in ribbon, bundle, or loose tube formats
• Common standards: G.657.A1/A2, G.652D, OM3/OM4/OM5 (MMF)

When Should You Use Multi-Core Jumpers?

📍 1. Data Centers With Limited Rack Space

• Use MPO trunk cables to reduce cable bulk
• Simplify deployment using breakout to LC at ToR switches
• Example: 12-core MPO to 6x LC duplex breakout

📍 2. FTTH Aggregation Points

• Fiber Distribution Hubs (FDH) to Optical Distribution Cabinets (ODC)
• Speeds up mass subscriber connections (e.g., 1×12 LC/APC terminations)

📍 3. 5G Fronthaul and C-RAN

• Multi-core links connect BBUs to RRUs
• Ensures low latency, high bandwidth, and scalable deployment

📍 4. Industrial / Harsh Environments

• Ruggedized military-grade multi-core jumpers for oil fields, power grids, etc.
• Often armored and waterproof (IP67/IP68 rated)

📍 5. Network Upgrades / Backbone Migration

• Ideal for Telco switching centers upgrading from TDM to WDM or PON
• Supports higher capacity with fewer cables

Comparison Table: Multi-Core vs Duplex vs Simplex

Real Use Case: Germany Urban Network Upgrade

A Tier-2 telecom operator in Munich, Germany, adopted 12-core LC/APC patch cords with ruggedized jackets in an urban FTTH upgrade. The result?

✅ Cut installation time by 42%
✅ Reduced panel footprint by 58%
✅ Improved signal stability with G.657.A2 fibers

Key Benefits for Procurement Managers

• Simplified Cabling: Replace 12 cables with 1 jumper
• Lower Labor Cost: Faster rollout, fewer technicians
• High Compatibility: Matches most ODFs, MPO cassettes
• Customization Friendly: Jacket type, breakout fanout, length, polish options
• Ready Stock: No MOQ at www.holightoptic.com & www.ftthfiberoptic.com

What to Consider Before Buying

• Fiber type (SM/MM) & standard (G.652D/G.657A1/G.657A2)
• Jacket material: LSZH, PVC, OFNR depending on installation
• Connector types: MPO/MTP vs LC/SC
• Factory test: IL < 0.3dB, RL > 55dB
• Fanout options: 0.9mm, 2.0mm, 3.0mm breakouts

Buyer’s Checklist: Avoid These 5 Mistakes

1. ❌ Buying MPO cables without verifying polarity (Type A/B/C)
2. ❌ Choosing higher core count than needed → wasted budget
3. ❌ Skipping fanout protection in breakout versions
4. ❌ Overlooking bend radius vs installation angle
5. ❌ No IL/RL testing certificates from supplier

Expert Insight: Future of Multi-Core Cabling

📈 According to Fiber Broadband Association, multi-core cables will dominate 10G/40G/100G aggregation layers by 2027.

“Enterprises want faster bandwidth with lower deployment time. Multi-core jumpers are no longer optional—they’re the backbone of scalable networks.”

Key Takeaways

• Multi-core patch cords = speed + density + flexibility
• Best for data centers, FTTH, 5G, and industrial deployments
• Choose supplier with no MOQ, quick customization, and real testing

CTA (Call to Action)

Looking to upgrade your patching strategy?
👉 Explore pre-terminated multi-core options from HOLIGHT now.
Or message our team at www.ftthfiberoptic.com to get free guidance.

FAQ

Can I customize the fanout length and jacket color?
Yes, 100% customizable based on your rack size and coding needs.

Do you supply MPO cassettes or panels with these patch cords?
Absolutely. We offer complete MPO cassette + patch panel solutions.

What’s the lead time for 12F and 24F jumpers?
Usually 3–5 days for standard lengths, 7–10 for custom specs.

Do you support armored multi-core cables for outdoor use?
Yes. We manufacture IP67-rated, armored cables for harsh environments.

How do you ensure connector polishing quality?
Each jumper is tested with interferometers and IL/RL meters before shipment.

Can I use multi-core patch cords with my existing ODF?
Yes, we offer breakout options to LC/SC that fit your frame.

What are your testing standards?
Each unit is factory-tested with IL < 0.3dB and RL > 55dB (SM).
