Designing an FTTH (Fiber to the Home) network is no longer simply about connecting homes with optical fiber. Today’s deployments must balance construction costs, scalability, maintenance efficiency, subscriber growth, and long-term operational reliability.
Whether you’re building a rural broadband project, expanding a GPON network, deploying XGS-PON, or evaluating suppliers for a municipal fiber rollout, the network architecture chosen today will influence installation costs and maintenance expenses for decades.
Many procurement teams concentrate on purchasing components individually—fiber cables, splitters, terminal boxes, adapters, patch panels, and connectors. Experienced network designers take a different approach.
They begin with the network.
Once the network architecture is correct, selecting products becomes much easier.
This guide explains the engineering logic behind FTTH network design while highlighting the purchasing decisions that determine long-term project success.

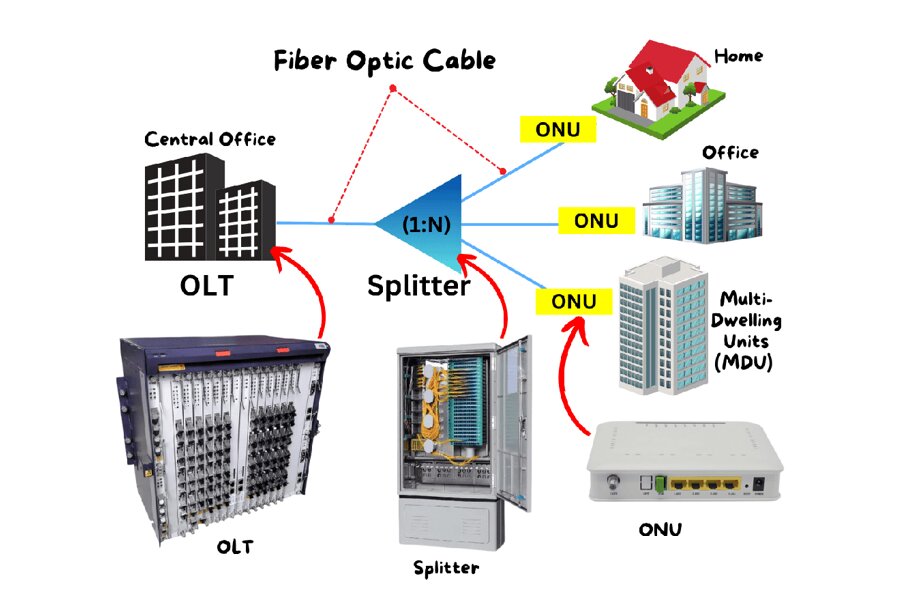

Why FTTH Network Design Matters More Than Individual Components
Many deployment problems are mistakenly blamed on products.
In reality, many failures originate much earlier during network planning.
Common examples include:
- Splitter ratios exceeding the optical power budget
- Distribution fibers with insufficient spare capacity
- Terminal box locations that increase future maintenance costs
- Poor cable routing creating unnecessary splice points
- Connector interfaces inconsistent across the network
- Cabinets reaching full capacity within only a few years
Replacing hardware rarely solves these issues.
Correct network planning does.
A well-designed FTTH network should achieve five long-term objectives:
| Objective | Why It Matters |
| Reliable optical performance | Stable service with sufficient power margin |
| Low installation cost | Efficient material usage and labor savings |
| Easy maintenance | Faster troubleshooting and reduced operating costs |
| Future scalability | Supports subscriber growth without rebuilding |
| Standardized infrastructure | Simplifies inventory, purchasing, and training |
Every subsequent design decision should support these five goals.

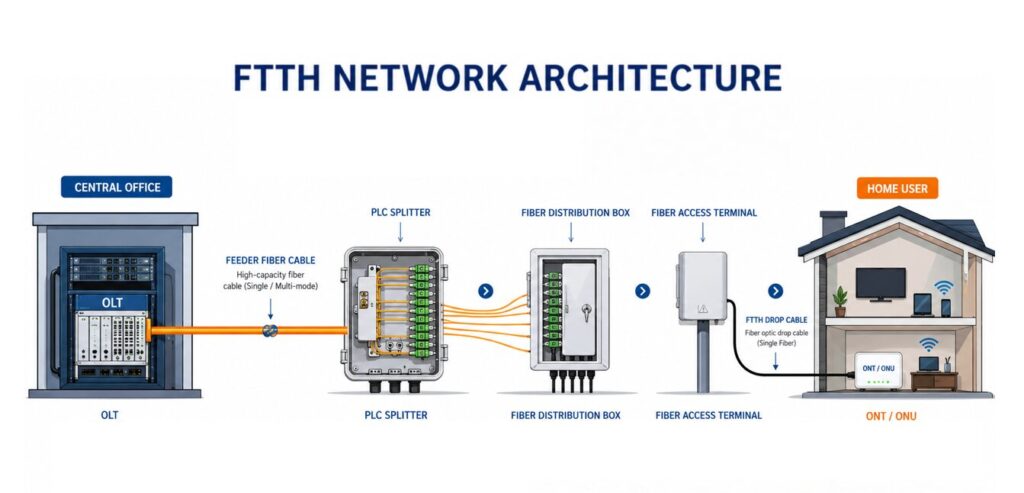

Understanding the Four Layers of an FTTH Network
Before selecting products, it’s helpful to understand the logical structure of an FTTH network.
OLT
│
│
Feeder Network
│
│
Primary Splitter
│
│
Distribution Network
│
│
Secondary Splitter (optional)
│
│
Drop Network
│
│
ONT
Although physical layouts vary, most FTTH deployments contain four functional layers.
Layer 1: Central Office (CO)
The Central Office contains active equipment, including:
- Optical Line Terminals (OLT)
- Core network equipment
- Optical Distribution Frames (ODF)
- Backbone connections
This layer generates optical signals that are distributed throughout the access network.
Design considerations include:
- Rack density
- Fiber management
- Expansion capacity
- Patch cord routing
- Backbone redundancy
Layer 2: Feeder Network
The feeder network carries high-capacity fibers from the Central Office toward distribution areas.
Characteristics include:
- Large fiber counts
- Long transmission distances
- Minimal branching
- High utilization
- Significant impact on future expansion
Typical cable choices:
- Loose tube outdoor cables
- Armored cables where required
- High fiber-count backbone cables
An undersized feeder network is one of the most expensive mistakes to correct after deployment.
Layer 3: Distribution Network
The distribution network divides feeder capacity into smaller service areas.
Typical components include:
- Fiber Distribution Hubs (FDH)
- PLC splitters
- Distribution cables
- Fiber access terminals
- Outdoor cabinets
This layer largely determines:
- Subscriber density
- Maintenance accessibility
- Optical loss allocation
- Expansion flexibility
Most network optimization decisions occur here.
Layer 4: Drop Network
The drop network provides the final connection to each subscriber.
Typical products include:
- Drop cables
- Terminal boxes
- Waterproof connectors
- Fast connectors
- Indoor outlets
- Patch cords
Although this represents the smallest portion of the network, it experiences the highest installation volume and field handling.
Mechanical reliability is often more important than optical performance at this stage.

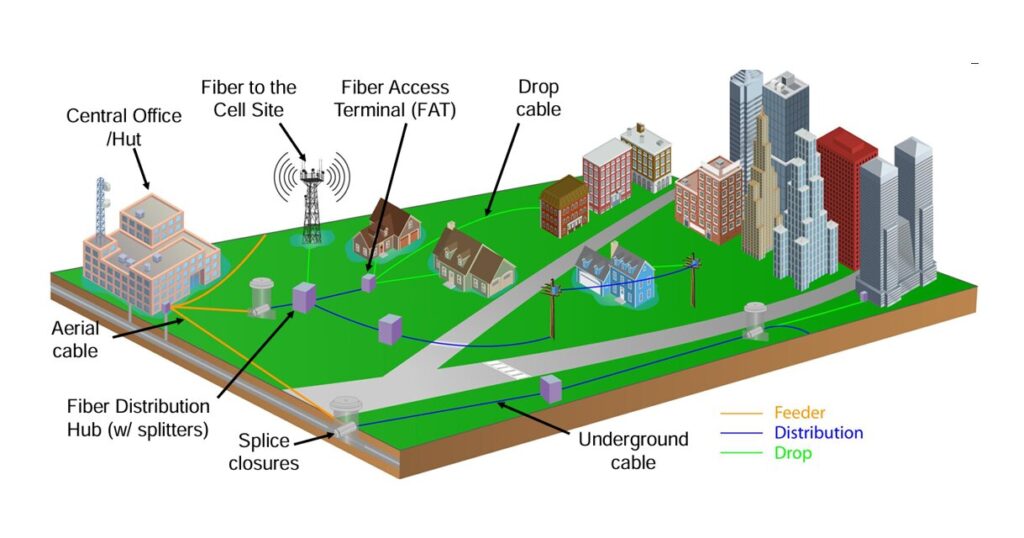

Step 1: Determine the Service Area
Every FTTH design begins with understanding the coverage area.
Questions include:
- How many homes will eventually be served?
- What is the expected penetration rate?
- Will expansion occur in phases?
- What is the subscriber density?
- Are buildings detached homes or apartments?
- What are the terrain conditions?
For example:
A neighborhood with 500 homes may initially connect only 200 subscribers.
Designing only for today’s demand can require costly reconstruction later.
Instead, planners usually estimate ultimate coverage before sizing backbone resources.
Step 2: Select the Appropriate Network Architecture
Different environments require different FTTH architectures.
Centralized Splitting
OLT
│
1×32 Splitter
│
32 Homes
Advantages:
- Simple maintenance
- Easy troubleshooting
- Centralized management
Disadvantages:
- Higher feeder fiber count
- Larger cabinets
Suitable for:
- Urban deployments
- Municipal broadband
- Accessible infrastructure
Distributed Splitting
OLT
│
1×4
│
1×8
│
32 Homes
Advantages:
- Lower feeder fiber requirements
- Flexible deployment
Disadvantages:
- More splice points
- Higher maintenance complexity
Suitable for:
- Rural deployments
- Long-distance networks
- Sparse subscriber distribution
Cascaded Architecture
Large operators often combine both approaches depending on local geography.
Rather than applying one architecture universally, planners optimize each service area individually.
Step 3: Calculate the Optical Power Budget
Every passive optical network has a finite optical loss budget.
This budget must include every source of attenuation between the OLT and the ONT.
Typical contributors include:
| Component | Typical Loss |
| Fiber cable | Distance dependent |
| Splice | Low |
| Connector | Low |
| PLC splitter | Highest contributor |
| Safety margin | Reserved capacity |
Many projects fail because designers focus only on splitter insertion loss while overlooking accumulated losses elsewhere.
A proper power budget also reserves additional margin for:
- Fiber aging
- Future repairs
- Connector contamination
- Temperature variation
- Equipment replacement
Designing with no reserve margin often creates long-term reliability problems.

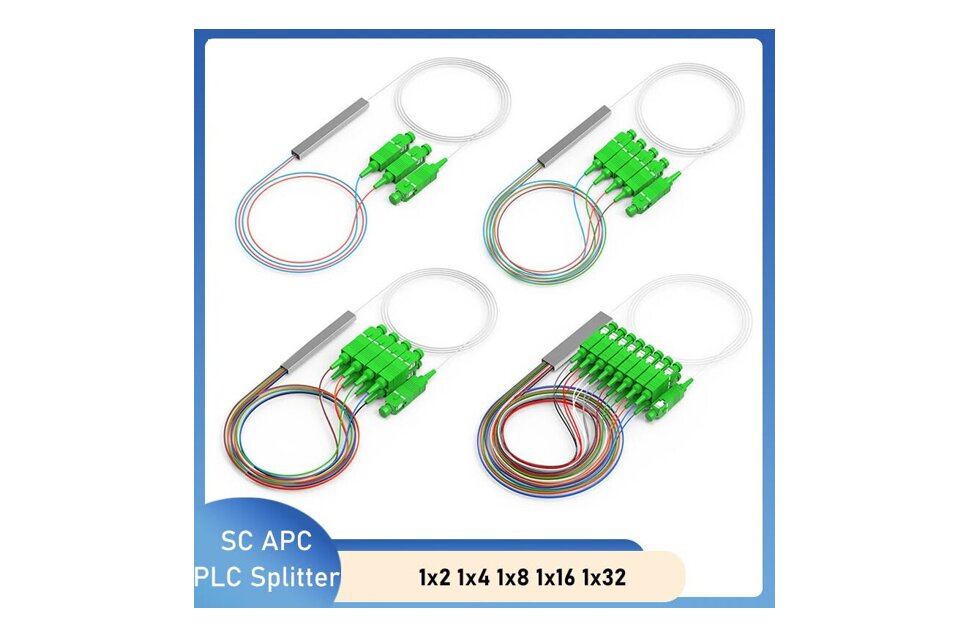

Step 4: Choose Appropriate Splitter Ratios
One of the most important engineering decisions involves splitter selection.
Common ratios include:
- 1×4
- 1×8
- 1×16
- 1×32
- 1×64
Higher ratios increase subscriber capacity while also increasing optical attenuation.
Choosing the largest possible splitter is not always the best strategy.
Instead, designers balance:
- Subscriber density
- Transmission distance
- Optical budget
- Growth plans
- Cabinet capacity
In many projects, lower split ratios provide better long-term flexibility despite slightly higher infrastructure costs.
Step 5: Design Fiber Routing
Efficient routing reduces both installation cost and maintenance complexity.
Designers should minimize:
- Unnecessary splice points
- Excess cable length
- Difficult maintenance locations
- Sharp bending
- Congested pathways
Good routing also separates:
- Backbone fibers
- Distribution fibers
- Drop fibers
This improves troubleshooting and future upgrades.
Step 6: Select Suitable Cable Types
Different network sections require different cable constructions.
Feeder Cables
Priorities:
- High fiber counts
- Mechanical protection
- Long-distance reliability
Distribution Cables
Priorities:
- Moderate fiber counts
- Flexible routing
- Outdoor durability
Priorities:
- Small diameter
- Easy installation
- Bend resistance
- Low installation cost
Selecting one cable type for every application rarely produces the best outcome.
Cable construction should match installation conditions.

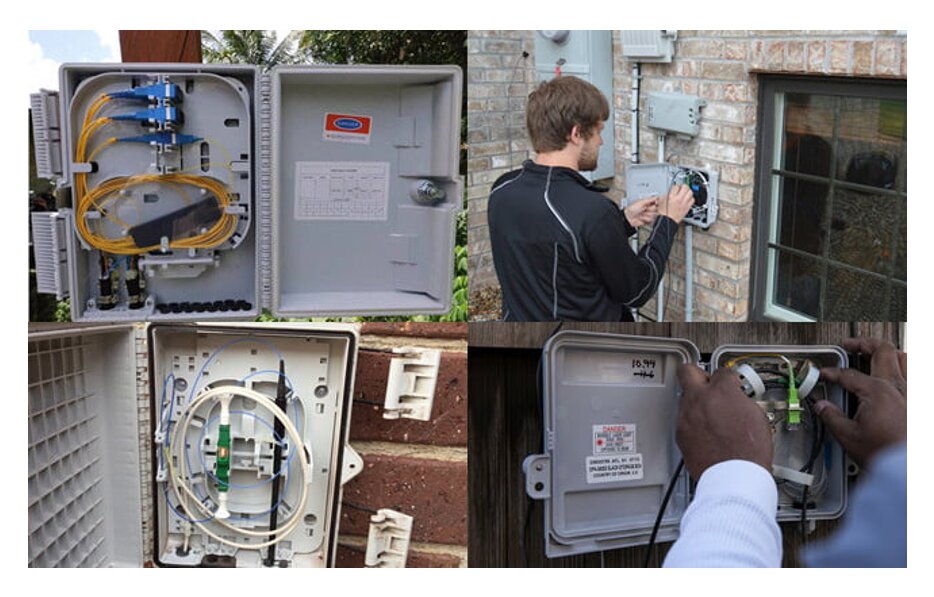

Step 7: Plan Terminal Locations Carefully
Terminal boxes appear inexpensive compared with active equipment.
However, their placement significantly influences future operating costs.
Poor locations often increase:
- Technician travel time
- Cable congestion
- Repair difficulty
- Subscriber connection delays
Good terminal placement considers:
- Accessibility
- Protection
- Expansion space
- Cable routing efficiency
- Future subscriber additions
The lowest-cost installation location is not always the lowest-cost lifetime location.
Step 8: Standardize Connectors and Interfaces
Mixed connector standards increase inventory complexity.
Many operators standardize:
- SC/APC for GPON access
- LC interfaces inside equipment rooms
- MPO connectors for high-density aggregation where appropriate
Standardization reduces:
- Installation errors
- Spare inventory
- Training requirements
- Maintenance time
It also simplifies supplier qualification.

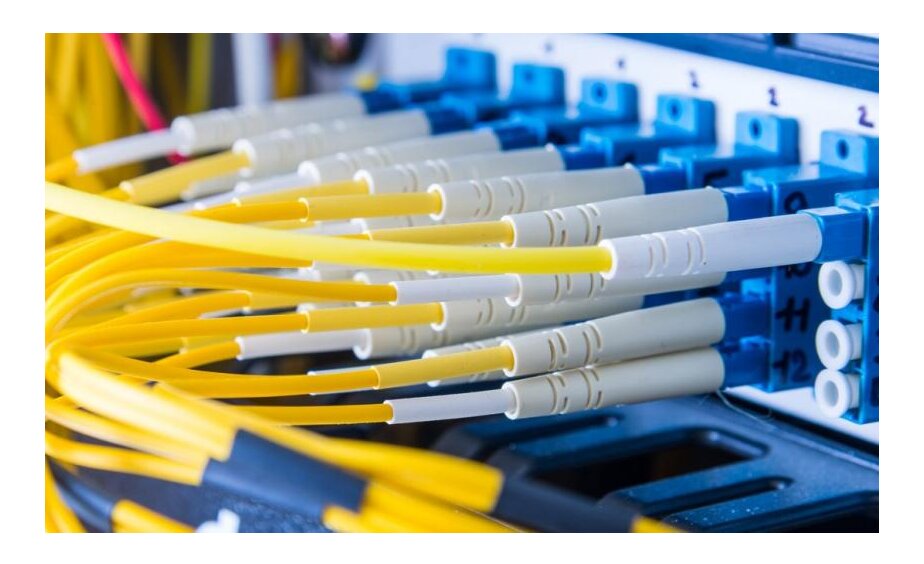

Step 9: Design for Future Expansion
One of the most common planning mistakes is designing only for current demand.
A better approach reserves capacity in:
- Fiber counts
- Cabinet space
- Splitter locations
- Spare ducts
- ODF ports
- Rack space
Although this increases initial investment slightly, it often avoids major reconstruction costs later.
Infrastructure typically lasts much longer than active equipment.
Procurement Considerations That Affect Long-Term Success
From a purchasing perspective, selecting the lowest product price rarely delivers the lowest project cost.
Procurement teams should evaluate suppliers based on:
Product Consistency
Consistent manufacturing reduces field failures and simplifies maintenance.
Standards Compliance
Products should comply with relevant international standards and support interoperability across the network.
Supply Stability
Long-term projects require reliable production capacity and consistent lead times.
Customization Capability
Projects frequently require:
- Custom cable lengths
- Different connector combinations
- Unique terminal configurations
- Private labeling
- Project-specific packaging
Suppliers capable of supporting these requirements reduce deployment delays.
Documentation Quality
Reliable suppliers provide:
- Technical drawings
- Test reports
- Product specifications
- Installation guidance
- Traceability records
Clear documentation reduces engineering uncertainty before deployment.
Common FTTH Design Mistakes
Experienced network planners repeatedly encounter similar issues.
Avoiding these mistakes can significantly improve project outcomes.
Oversized Split Ratios
Attempting to maximize subscriber numbers often leaves insufficient optical margin.
Insufficient Spare Fibers
Future expansion becomes expensive when backbone capacity is exhausted.
Poor Cabinet Planning
Cabinets that cannot accommodate additional splitters or splice trays limit future scalability.
Excessive Splice Points
Every additional splice increases installation effort and maintenance complexity.
Inconsistent Product Selection
Using multiple connector types, adapter standards, or terminal designs increases operational complexity.
Ignoring Maintenance Access
Infrastructure should be easy to inspect, repair, and upgrade throughout its service life.
A Practical Decision Framework for Buyers
Rather than evaluating individual components independently, experienced buyers review the network as a complete system.
A useful evaluation sequence is:
- Define subscriber coverage objectives.
- Select the appropriate network architecture.
- Calculate the optical power budget.
- Determine splitter strategy.
- Design cable routing.
- Reserve future expansion capacity.
- Standardize interfaces.
- Select qualified suppliers capable of long-term support.
This system-level approach reduces both capital expenditure and lifetime operating costs.
Conclusion
Successful FTTH projects are built on sound network architecture rather than individual product specifications.
Fiber cables, splitters, adapters, terminal boxes, connectors, and patch panels all contribute to network performance, but none of them can compensate for poor planning.
By understanding service requirements, optical budgets, splitter strategies, cable routing, infrastructure scalability, and procurement considerations together, buyers can make decisions that support reliable operation for many years.
An FTTH network is a long-term infrastructure investment. Designing it correctly from the beginning is almost always less expensive than correcting design limitations after deployment.
Frequently Asked Questions
What is the first step in designing an FTTH network?
The first step is defining the service area, expected subscriber density, long-term coverage goals, and future expansion plans. These factors influence every subsequent design decision.
Which splitter ratio is best for FTTH?
There is no universal answer. The optimal ratio depends on subscriber density, transmission distance, optical power budget, maintenance strategy, and future scalability.
Should I use centralized or distributed splitting?
Centralized splitting simplifies maintenance and troubleshooting, while distributed splitting reduces feeder fiber requirements and can be more suitable for rural deployments. Many large networks combine both approaches.
How much spare fiber capacity should be reserved?
Most experienced planners reserve additional fiber capacity for future subscriber growth, repairs, and network upgrades. The exact amount depends on project scale and expansion expectations.
Why is optical power budget planning so important?
The optical power budget ensures that total attenuation from fiber, connectors, splices, and splitters remains within the operating range of the PON system while maintaining adequate performance margins.
Can GPON and XGS-PON share the same FTTH infrastructure?
Yes. In many cases, properly designed passive infrastructure—including cables, splitters, and distribution hardware—can support both GPON and XGS-PON, allowing operators to upgrade active equipment without rebuilding the outside plant.
What products are typically required for an FTTH deployment?

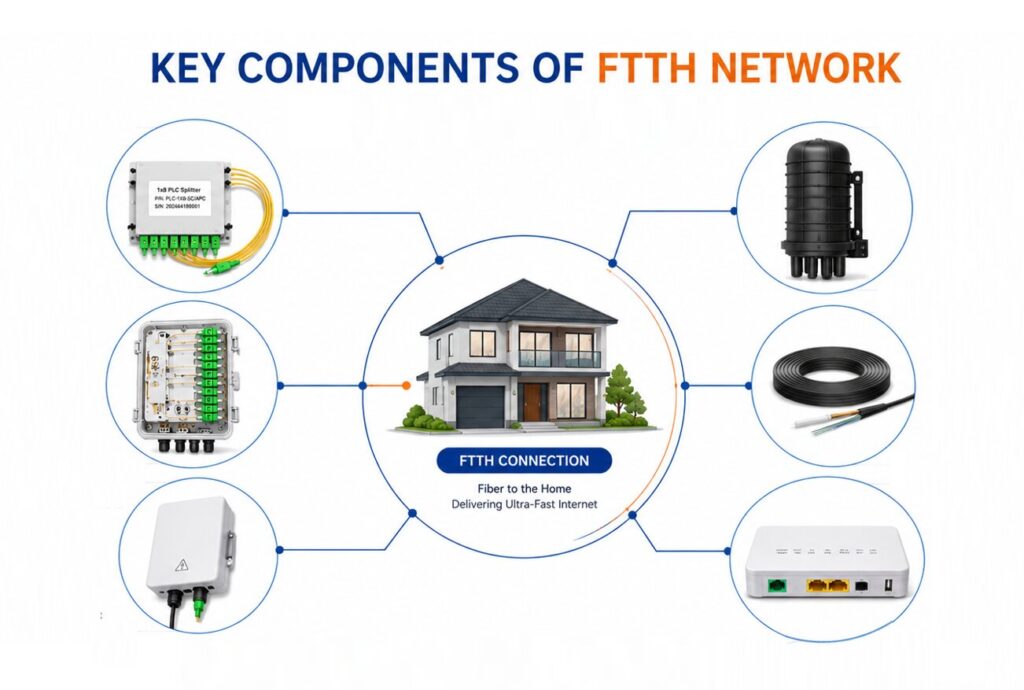

A complete FTTH network commonly includes fiber optic cables, PLC splitters, fiber distribution hubs, terminal boxes, splice closures, optical distribution frames, adapters, connectors, patch cords, and customer drop cables.
How should buyers evaluate FTTH component suppliers?
Beyond price, buyers should consider manufacturing consistency, standards compliance, production capacity, documentation quality, customization capability, quality control processes, and long-term supply reliability.
Keyword Summary
Primary Keywords: FTTH network design, FTTH architecture, fiber to the home design, FTTH planning, FTTH deployment
Related Keywords: GPON network design, XGS-PON infrastructure, PLC splitter selection, optical power budget, fiber distribution network, feeder cable, drop cable, FTTH terminal box, fiber routing, passive optical network
Get Your Best Price Now!
