How to Design Fiber Cabling for AI Data Centers: A Complete Buyer's Decision Guide - Elevating Your Project Profits with Superior Fiber Optic Patch Cords

How to Design Fiber Cabling for AI Data Centers: A Complete Buyer’s Decision Guide

July 22, 2026

The rapid adoption of artificial intelligence is transforming data center design faster than any previous computing revolution.

Unlike traditional enterprise applications, AI training clusters generate enormous volumes of east-west traffic, requiring thousands of GPUs to exchange data with extremely low latency. As compute density increases, the network—not the servers—often becomes the limiting factor.

For infrastructure planners, this changes an important assumption.

Fiber cabling is no longer just a passive medium connecting switches and servers.

It has become a strategic infrastructure asset that directly affects scalability, deployment speed, operational efficiency, and the total cost of future expansion.

Many procurement teams begin by selecting switches, transceivers, or GPU servers. Experienced AI infrastructure architects start somewhere else.

They start with the cabling architecture.

Because once thousands of optical links are installed, changing the physical infrastructure becomes significantly more expensive than replacing active equipment.

This guide explains how buyers, network architects, system integrators, and data center operators should design fiber cabling for AI environments—not only to support today’s GPU clusters, but also to accommodate the next generation of high-density computing.

Why AI Data Centers Require a Different Cabling Strategy

Many organizations assume an AI data center is simply a larger version of a traditional enterprise data center.

That assumption leads to costly design mistakes.

Traditional enterprise environments primarily handle north-south traffic—data flowing between users and applications. AI clusters behave differently.

During distributed model training, thousands of GPUs exchange parameters continuously. Most traffic remains inside the computing fabric, creating extremely high volumes of east-west traffic.

This changes nearly every cabling decision.

Instead of optimizing primarily for rack-to-core connectivity, designers must optimize for:

Massive GPU-to-GPU communication
Extremely high port density
Predictable cable routing
Fast deployment of large clusters
Simplified maintenance
Future scalability

The objective is no longer simply connecting devices.

It is enabling efficient large-scale parallel computing.

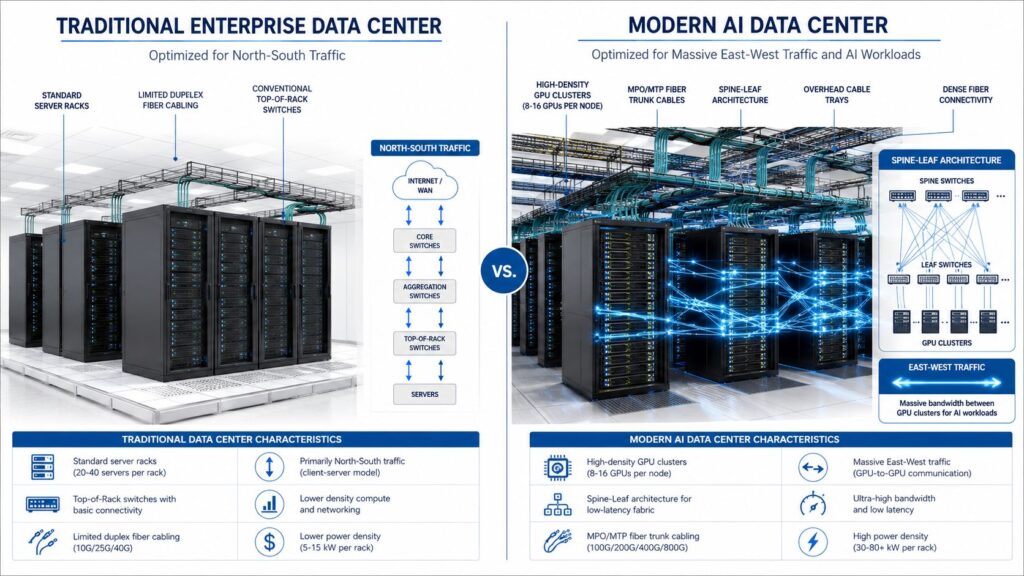

Traditional Data Centers vs AI Data Centers

Although both environments rely on optical fiber, their infrastructure priorities differ significantly.

Design Factor	Traditional Data Center	AI Data Center
Primary Traffic	North-South	East-West
Typical Workload	Enterprise Applications	Distributed AI Training
Network Scale	Moderate	Extremely High
GPU Density	Low	Very High
Cabling Complexity	Moderate	High
Future Expansion Rate	Gradual	Rapid

These differences explain why many design practices that worked well in enterprise networks become less effective in AI deployments.

Infrastructure designed for office applications rarely scales efficiently to thousands of interconnected GPUs.

Think Beyond Today’s Cluster

One of the most expensive mistakes in AI infrastructure planning is designing only for the first deployment phase.

Imagine an organization deploying its first AI cluster.

Today, the requirement is modest:

128 GPUs
Two AI pods
Limited storage fabric

The network appears relatively simple.

Two years later, successful AI adoption drives demand for:

2,000+ GPUs
Multiple training clusters
Dedicated inference infrastructure
High-performance storage networks
Additional spine layers

If the original cabling system was designed only for the first deployment, expansion often requires extensive recabling, service interruptions, and significant labor costs.

Now consider another organization.

Instead of optimizing only for the initial deployment, it reserves pathway capacity, standardizes connector interfaces, adopts modular fiber distribution, and leaves room for future growth.

When expansion becomes necessary, most work involves installing additional trunks, cassettes, and active equipment—not rebuilding the entire physical infrastructure.

Both organizations purchased fiber.

Only one invested in infrastructure.

That distinction defines successful AI data center design.

Five Principles of AI Fiber Cabling Design

Regardless of network size or hardware vendor, successful AI data centers typically follow five fundamental design principles.

These principles remain valuable even as switches, transceivers, and GPU platforms continue evolving.

Principle 1: Design for Scale, Not for Today

Traditional projects often optimize around current requirements.

AI infrastructure should optimize around expected growth.

Questions to ask include:

How many GPU clusters may exist in five years?
Will additional AI pods require independent fabrics?
How many unused pathways should remain available?
Can the structured cabling system accommodate higher-density switching platforms?

Every major expansion becomes easier when capacity is intentionally reserved during the initial deployment.

Unused fiber is inexpensive.

Rebuilding pathways is not.

Principle 2: Standardize the Physical Layer

Large AI deployments frequently contain tens of thousands of optical connections.

Without standardization, operational complexity increases rapidly.

Successful operators typically standardize:

Connector types
Fiber polarity methods
Trunk cable configurations
Patch panel layouts
Labeling conventions
Rack numbering systems
Cable color identification

Standardization reduces installation errors, shortens deployment time, and simplifies troubleshooting throughout the facility’s lifecycle.

Consistency is often more valuable than maximizing short-term flexibility.

Principle 3: Minimize Physical Complexity

As network size grows, complexity becomes a hidden operational cost.

Every additional adapter, splice, cassette, or routing transition increases:

Installation effort
Documentation requirements
Potential failure points
Troubleshooting time

This does not mean eliminating modularity.

It means introducing components only when they create measurable operational value.

A simpler physical topology is usually easier to maintain, expand, and document.

Principle 4: Prioritize Serviceability

AI clusters generate substantial business value.

Downtime becomes increasingly expensive as cluster utilization rises.

Consequently, fiber infrastructure should support rapid maintenance rather than simply maximizing rack density.

Examples include:

Front-access patching
Clearly separated cable pathways
Organized slack management
Consistent port numbering
Easily replaceable modules

Infrastructure should allow technicians to perform upgrades or repairs with minimal disruption to neighboring connections.

Operational efficiency begins with physical accessibility.

Principle 5: Build for Multiple Technology Generations

Network speeds continue increasing.

10G became 40G.

40G evolved into 100G.

Today, 400G deployments are becoming mainstream, while 800G and 1.6T are already influencing infrastructure planning.

The passive cabling system should outlive several generations of switches and transceivers.

Well-designed fiber infrastructure minimizes future disruption by supporting higher transmission speeds without requiring large-scale physical reconstruction.

The most valuable cabling systems are those that remain useful long after today’s hardware has been replaced.

Designing the Right Network Architecture

Once the long-term design principles are established, the next decision is selecting the physical network architecture.

This is where many AI infrastructure projects begin to diverge from traditional enterprise data centers.

Historically, network architects designed cabling around server racks.

Modern AI architects design cabling around GPU communication patterns.

The question is no longer:

“How do we connect servers?”

Instead, it becomes:

“How do we allow thousands of GPUs to exchange data with the lowest possible latency while keeping future expansion manageable?”

That shift changes how the entire physical layer should be planned.

Understanding AI Network Traffic

Large Language Models, recommendation engines, autonomous driving systems, and scientific simulations all rely on distributed computing.

During model training, every GPU continuously exchanges information with many other GPUs.

For example, a training job may require thousands of GPUs to synchronize gradients after every computation cycle.

Unlike traditional business applications, this communication rarely leaves the cluster.

Most traffic stays inside the AI fabric.

This means cabling must support:

Massive east-west bandwidth
Predictable latency
High port density
Efficient cable organization
Rapid scalability

Rather than thinking of the network as a collection of racks, it is more accurate to think of it as one enormous distributed computing system.

Choosing the Right Physical Topology

Several physical topologies can support AI environments.

Each offers different advantages depending on cluster size and future expansion plans.

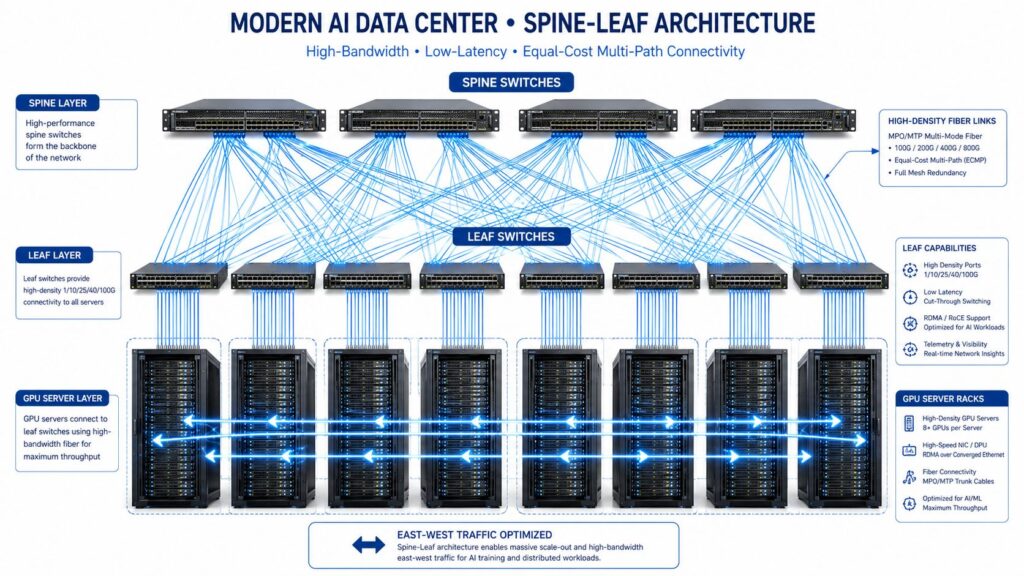

Spine-Leaf Architecture

Spine-Leaf has become the dominant architecture for modern AI data centers.

Its primary strength is predictable performance.

Each Leaf switch connects to every Spine switch, allowing traffic to follow multiple equal-cost paths.

Advantages include:

Low and predictable latency
Excellent scalability
High bandwidth utilization
Simplified network expansion
Well suited for GPU clusters

For most greenfield AI deployments, Spine-Leaf represents the safest long-term choice.

Clos Network Architecture

Clos architectures extend the Spine-Leaf concept by introducing additional switching stages.

As GPU clusters grow into tens of thousands of accelerators, multiple switching tiers become necessary.

Large hyperscale AI facilities often deploy multi-stage Clos fabrics because they provide:

Extremely high scalability
Large non-blocking networks
Flexible expansion
Efficient load balancing

The trade-off is increased planning complexity.

More switching layers require greater discipline in cabling design, documentation, and pathway management.

For very large AI deployments, however, this additional complexity is usually justified.

A Decision That Matters More Than Most Buyers Expect

Many procurement teams compare network architectures by asking:

Which one performs better?

Experienced architects ask a different question:

Which architecture will still be manageable after the third expansion?

That distinction is important.

A network that performs well today but becomes difficult to expand may ultimately cost far more than a design that initially required a slightly higher investment.

Good architecture reduces future labor—not merely today’s equipment cost.

Single-Mode vs Multimode Fiber

Few topics generate more discussion than the choice between single-mode (OS2) and multimode (OM4/OM5) fiber.

The correct answer depends less on technology preference than on long-term deployment strategy.

When Multimode Still Makes Sense

Multimode fiber continues to provide advantages for certain environments.

Typical characteristics include:

Lower short-distance optics cost
Mature ecosystem
Good performance within limited distances
Suitable for many enterprise deployments

For relatively small AI clusters located within a single data hall, multimode infrastructure may remain economically attractive.

Why Single-Mode Is Becoming the Preferred Choice

Many new AI facilities are standardizing on single-mode fiber.

This trend is driven by infrastructure longevity rather than immediate transmission distance.

Single-mode fiber offers several long-term advantages:

Supports future transmission generations
Simplifies migration to higher speeds
Eliminates many distance limitations
Reduces the need for future recabling
Better supports expanding AI campuses

The fiber itself is often only a small portion of total deployment cost.

Civil construction, installation labor, and future disruption generally represent much larger investments.

Consequently, many operators prefer installing infrastructure that remains useful for decades.

Decision Framework: Single-Mode or Multimode?

Rather than asking which fiber type is “better,” consider the deployment scenario.

Deployment Scenario	Typical Recommendation
Small enterprise AI lab	Multimode may be sufficient
Private AI cluster	Evaluate both options based on growth expectations
New hyperscale AI data center	Single-mode is generally preferred
Long-term greenfield deployment	Single-mode typically provides greater investment protection
Multi-building AI campus	Single-mode is usually the more practical choice

Notice that the decision depends primarily on lifecycle planning rather than transmission specifications alone.

Why MPO/MTP Has Become Essential

As network density increases, duplex cabling becomes increasingly difficult to manage.

Imagine connecting several thousand GPU servers using only duplex patch cords.

The result would include:

Large cable bundles
Congested pathways
Reduced airflow
Longer installation times
More difficult maintenance

This is precisely why MPO/MTP systems have become the foundation of modern AI data center cabling.

Instead of managing individual duplex links, high-fiber-count connectors consolidate multiple fibers into a single interface.

This dramatically improves deployment efficiency.

The Advantages of MPO/MTP Architecture

A properly designed MPO/MTP system offers benefits throughout the network lifecycle.

Higher Port Density

More fibers occupy less rack space.

As switch density increases, efficient front-panel utilization becomes increasingly important.

Faster Deployment

Installing one trunk cable is considerably faster than routing dozens of individual duplex assemblies.

This becomes particularly valuable during large-scale GPU deployments.

Better Cable Management

Organized trunks simplify routing while reducing congestion inside racks and overhead pathways.

Simpler routing also improves maintenance.

Easier Future Expansion

Modular MPO infrastructure allows additional capacity to be introduced with relatively little disruption.

Expansion becomes a planned engineering activity instead of a major reconstruction project.

Think in Systems, Not Components

A common purchasing mistake is evaluating trunks, cassettes, patch panels, and patch cords separately.

Experienced designers rarely make decisions this way.

Instead, they evaluate the complete channel.

A typical AI fiber channel may include:

Backbone trunk
Distribution trunk
Modular cassette
High-density patch panel
Breakout assembly
Equipment patch cord

Each component affects:

Optical loss
Installation efficiency
Maintenance accessibility
Upgrade flexibility

Optimizing one component while ignoring the rest rarely produces the best overall outcome.

Successful AI infrastructure is designed as a complete physical ecosystem—not as a collection of independent products.

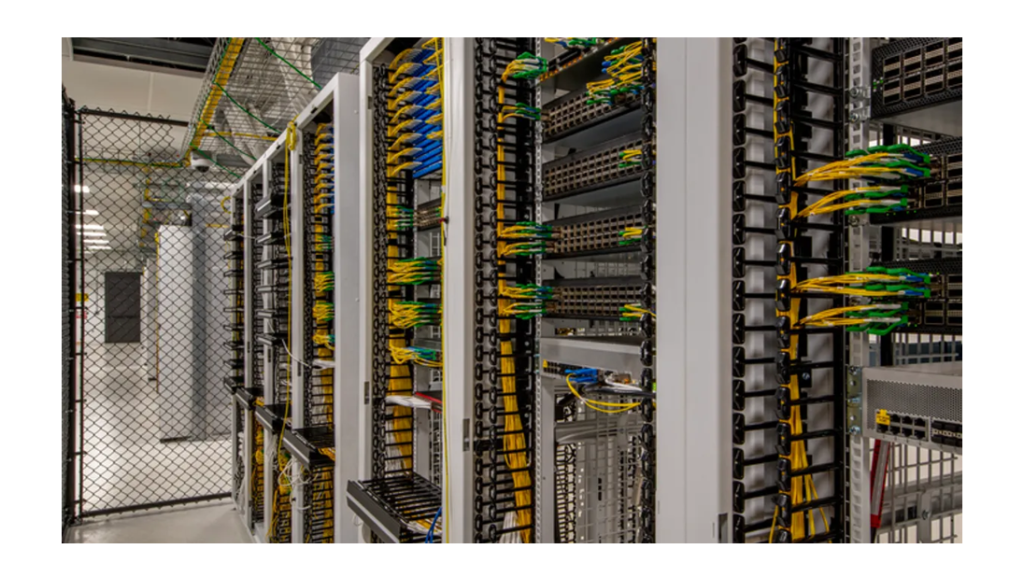

Designing for High-Density AI Infrastructure

As GPU clusters continue to grow, density becomes one of the defining characteristics of modern AI data centers.

Higher density creates obvious advantages:

More computing power per rack
Better space utilization
Shorter electrical pathways
Lower infrastructure cost per GPU

However, increasing density also introduces new physical challenges.

The question is no longer:

“How many fibers can fit into a rack?”

Instead, it becomes:

“How can thousands of fiber connections remain organized, serviceable, and scalable over the next ten years?”

Successful AI infrastructure balances density with operational simplicity.

Maximum density without maintainability is rarely an optimal design.

Density Is Not the Goal—Operational Efficiency Is

Many first-generation AI deployments pursued the highest possible port density.

Several years later, operators discovered unexpected problems.

Technicians struggled to:

Identify individual connections
Replace failed transceivers
Route additional cables
Expand GPU pods
Document network changes

The physical layer had become difficult to manage.

Modern design philosophy has therefore shifted.

Instead of maximizing density at all costs, experienced architects optimize for usable density.

Usable density means infrastructure remains efficient throughout its operational lifecycle—not just on commissioning day.

Designing for Human Operations

Every AI data center will eventually require:

Hardware replacement
Network upgrades
Capacity expansion
Fault isolation
Preventive maintenance

These activities are performed by people.

Consequently, cabling should be designed around human workflows as well as optical performance.

Questions worth asking include:

Can a technician identify the correct fiber within seconds?
Can a module be replaced without disturbing adjacent connections?
Can new trunks be installed without removing existing ones?
Can documentation remain accurate after multiple expansion phases?

Infrastructure that answers “yes” to these questions typically produces lower operating costs over many years.

Planning for Future Growth

One of the defining characteristics of AI infrastructure is uncertainty.

Few organizations can accurately predict how many GPUs they will operate five years from now.

History suggests that most forecasts underestimate growth.

Consider a realistic scenario.

An enterprise initially deploys:

Four GPU pods
256 GPUs
One Spine layer
Limited storage connectivity

The physical infrastructure appears sufficient.

Within three years:

AI adoption expands across multiple business units.
Dedicated inference clusters are introduced.
Storage bandwidth increases substantially.
Additional network fabrics become necessary.

If spare capacity was never planned, every expansion becomes progressively more disruptive.

By contrast, infrastructure designed with reserved pathways, modular distribution, and standardized cabling can often absorb significant growth without major reconstruction.

The cost difference during the initial deployment may be relatively small.

The operational difference five years later can be enormous.

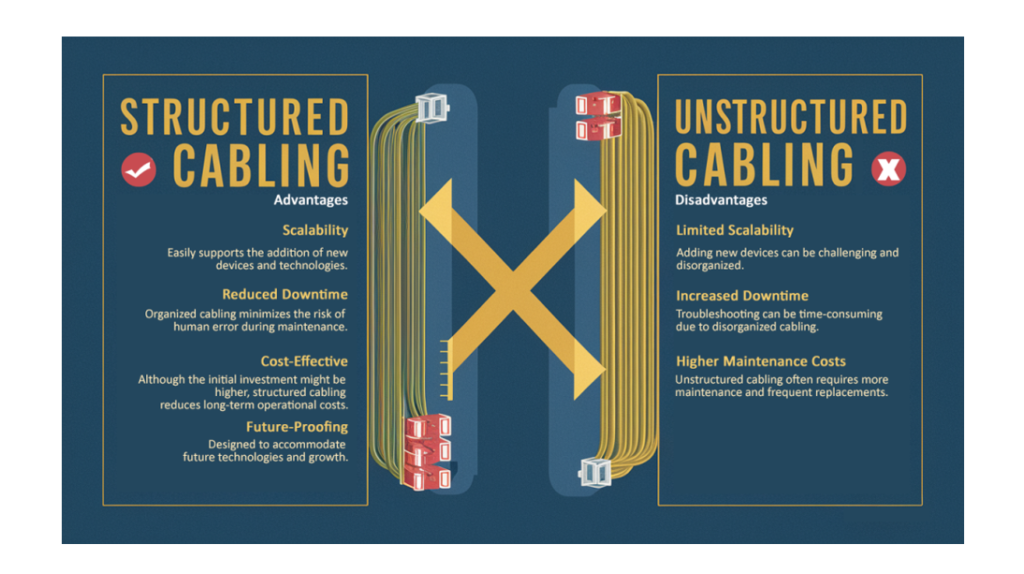

Structured Cabling vs Direct Cabling

This decision frequently appears during AI infrastructure planning.

Both approaches have legitimate applications.

The key is understanding their long-term implications.

Direct Cabling

Direct connections reduce the number of intermediate components.

Advantages include:

Simpler optical channels
Fewer connection interfaces
Lower insertion loss
Reduced material count

For very small GPU clusters, direct cabling can be practical.

However, as network size increases, limitations begin to emerge.

Adding new equipment often requires rerouting existing cables.

Cable pathways become congested.

Documentation becomes increasingly difficult to maintain.

Structured Cabling

Structured cabling introduces modular connection points throughout the infrastructure.

Typical elements include:

Backbone trunks
High-density patch panels
Modular cassettes
Cross-connect areas
Standardized distribution zones

Although structured cabling introduces additional planning and hardware, it offers substantial operational benefits.

Expansion becomes easier.

Moves, adds, and changes become more predictable.

Large-scale maintenance becomes significantly less disruptive.

For medium and large AI facilities, structured cabling generally provides superior lifecycle value.

A Practical Trade-Off

Imagine two organizations deploying identical GPU clusters.

Organization A

Chooses direct cabling because it appears less expensive.

The first installation proceeds quickly.

Three years later, the cluster doubles in size.

Existing pathways become overloaded.

New cables must be threaded through occupied trays.

Several maintenance windows are required simply to reorganize the physical layer.

Organization B

Deploys structured cabling from the beginning.

Initial investment is moderately higher.

However, expansion requires only:

Additional trunk cables
New cassettes
Additional patch cords
Updated documentation

Most existing infrastructure remains untouched.

This example illustrates an important principle.

Infrastructure should be evaluated across its entire lifecycle—not only during initial installation.

Why Modularity Matters

Large AI environments evolve continuously.

Switches are upgraded.

GPU generations change.

Storage fabrics expand.

New AI clusters are commissioned.

Modular infrastructure accommodates these changes with minimal disruption.

Examples include:

Modular patch panels
Replaceable MPO cassettes
Standardized trunk assemblies
Uniform breakout modules

Modularity allows portions of the network to evolve independently without requiring complete redesigns.

This flexibility becomes increasingly valuable as infrastructure grows.

Procurement Decisions That Influence Future Scalability

Many procurement teams evaluate products independently.

Experienced infrastructure planners evaluate suppliers according to their ability to support long-term architectural consistency.

Important considerations include:

Manufacturing Consistency

Large AI deployments often require thousands of identical assemblies.

Consistency between production batches reduces installation variability and simplifies quality assurance.

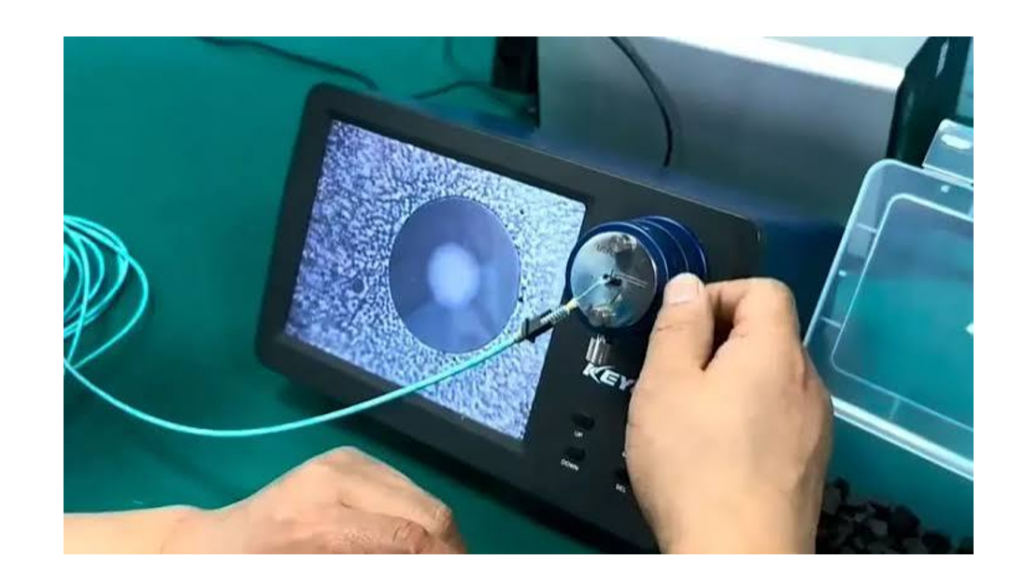

Standardized Testing

Reliable suppliers should provide repeatable optical testing with complete documentation.

Testing consistency is especially important when deploying high-density MPO/MTP systems.

Configuration Flexibility

Every AI project differs.

Buyers frequently require:

Custom trunk lengths
Different fiber counts
Specific polarity methods
Breakout configurations
Project-specific labeling
Rack-by-rack packaging

Suppliers capable of supporting these requirements simplify deployment logistics.

Long-Term Product Availability

AI infrastructure rarely expands all at once.

Projects often continue over several years.

Maintaining consistent component availability helps preserve architectural standardization throughout multiple deployment phases.

Common Fiber Cabling Mistakes in AI Data Centers

Although every project is unique, several mistakes appear repeatedly.

Designing Only for Current Capacity

The first GPU cluster is rarely the last.

Infrastructure should anticipate continued growth.

Prioritizing Lowest Initial Cost

Reducing upfront expenditure may increase future labor costs many times over.

The least expensive installation is not always the least expensive network.

Ignoring Cable Management

Poor cable organization increases maintenance effort throughout the network lifecycle.

Good cable management is an operational investment—not merely an aesthetic consideration.

Mixing Standards

Using different connector types, polarity methods, labeling systems, or patching philosophies increases long-term complexity.

Consistency usually delivers greater value than flexibility.

Selecting Components Independently

Trunks, cassettes, patch panels, adapters, and patch cords should function as one integrated system.

Optimizing individual components without considering the overall architecture often reduces long-term efficiency.

A Buyer’s Decision Framework

Before approving a fiber cabling design for an AI data center, decision makers should ask six fundamental questions.

Question	Why It Matters
Will this architecture support the next generation of GPU clusters?	Protects long-term investment
Can additional capacity be added without major reconstruction?	Improves scalability
Are connector interfaces standardized across the facility?	Simplifies operations
Is maintenance possible without disturbing adjacent links?	Reduces downtime
Does the physical layer support future transmission speeds?	Extends infrastructure lifespan
Can the supplier provide consistent products over multiple project phases?	Maintains deployment consistency

If the answer to most of these questions is “yes,” the infrastructure is more likely to remain efficient throughout its operational life.

Conclusion

Designing fiber cabling for AI data centers is fundamentally different from designing networks for traditional enterprise environments.

AI workloads demand higher density, greater scalability, predictable latency, and infrastructure capable of supporting continuous growth.

Successful projects therefore begin with architecture—not hardware.

They prioritize standardized physical layers, modular expansion, structured cabling, operational simplicity, and long-term investment protection.

Switches, transceivers, and GPU platforms will continue evolving over the coming decade.

The passive fiber infrastructure installed today should remain valuable throughout those technology cycles.

Organizations that design with this long-term perspective are far more likely to build AI data centers that scale efficiently, operate reliably, and adapt to future generations of computing without repeated physical reconstruction.

Frequently Asked Questions

Should AI data centers always use single-mode fiber?

Not necessarily. Smaller AI environments may continue to use multimode fiber effectively. However, many new large-scale AI data centers are adopting single-mode fiber because it offers greater flexibility for future expansion and higher-speed transmission technologies.

Why are MPO/MTP systems widely used in AI data centers?

MPO/MTP connectors enable high-density fiber connectivity, simplify cable management, accelerate deployment, and support modular network architectures—making them well suited for GPU clusters containing thousands of optical links.

Is structured cabling better than direct cabling for AI infrastructure?

For small deployments, direct cabling may be sufficient. For medium and large AI data centers, structured cabling generally provides better scalability, easier maintenance, and lower lifecycle costs.

How much spare fiber capacity should be reserved?

There is no universal percentage. Most experienced designers reserve sufficient pathway space, panel capacity, and fiber resources to accommodate expected expansion without requiring major reconstruction.

Does faster network hardware require replacing the fiber infrastructure?

Not always. A well-designed passive fiber system can often support multiple generations of switches and transceivers, allowing organizations to upgrade active equipment while keeping most of the physical cabling unchanged.

What is the most common mistake in AI data center cabling design?

Designing only for the initial deployment. AI infrastructure typically grows much faster than expected, making scalability one of the most important design considerations from the very beginning.

Keyword Summary

Primary Keywords: AI data center fiber cabling, AI data center design, MPO MTP cabling, AI network infrastructure, high-density fiber cabling

Related Keywords: GPU cluster cabling, structured cabling, Spine-Leaf architecture, Clos network, single-mode fiber, multimode fiber, optical cabling for AI, data center fiber design, AI infrastructure planning, modular fiber systems
